| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| X01 | Karachi NSY | 1988 | in service (2019) | ||||
| X02 | Karachi NSY | 1988 | in service (2019) | ||||
| X03 | Karachi NSY | 1992 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
100 / 110 |
|
Length, m |
27.3 |
|
Breadth, m |
2.30 |
|
Draught, m |
2.00 |
|
No of shafts |
1 |
|
Machinery |
1 diesel-generator, 1 electric motor |
|
Power, h. p. |
200 |
|
Max speed, kts |
9 / 7 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1800(7) / 60(4.5) |
|
Armament |
2 - 533 TC (2 E14/E15) or 12 Mk 414 Limpet mines |
|
Electronic equipment |
sonar |
|
Complement |
6 + 8 divers |
|
Diving depth operational, m |
150 |
Project history: MG-110 design of COSMOS, Italy. Can carry two torpedoes or 8-12 magnetic mines or 8 combat swimmers with 2t of explosives and two CF2 FX60 swimmer delivery vehicles.
Modernizations: None.
Naval service: No significant events.

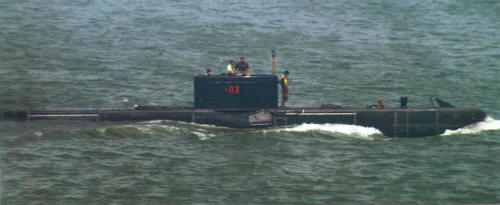

X03 2003
