Hashmat 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| حشمت [Hashmat] (ex-Astrant) | S135 | Dubigeon, Nantes, France | 15.9.1976 | 14.12.1977 | 17.2.1979 | in service (2019) | |
| حرمت [Hurmat] (ex-Adventurous) | S136 | Dubigeon, Nantes, France | 18.9.1977 | 1.12.1978 | 18.2.1980 | in service (2019) |
|
Displacement standard, t |
1230 |
|
Displacement normal, t |
1450 / 1725 |
|
Length, m |
67.6 |
|
Breadth, m |
6.80 |
|
Draught, m |
5.40 |
|
No of shafts |
1 |
|
Machinery |
2 SEMT-Pielstick 16PA4 V185 diesel-generators, 1 Schneider electric motor / 1 cruising electric motor |
|
Power, h. p. |
4600 / 4600 / 23 |
|
Max speed, kts |
12.5 / 20 |
|
Fuel, t |
diesel oil 200 |
| Endurance, nm(kts) | 8500(9) (snorkel) / 350(3.5) |
|
Armament |
4 - 533 TT (bow, 20 F17P) |
| Electronic equipment | DRUA-33 radar, DUUA-2A/B, DSUV-2H, DUUX-2A sonars, ARUR, ARUD ECM suites, DLA D3 CCS |
| Complement | 55 |
| Diving depth operational, m | 300 |
Project history: French Agosta 70 class submarines from the South African order, cancelled after UN embargo declaration and bought by Pakistan in November 1978.
Modernizations: 1985-1989, both: + ability to launch Sub-Harpoon SSM (4 UGM-84A instead of torpedoes); missiles were never transferred to Pakistan
mid-2010s, both: - DSUV-2H, DUUX-2A sonars, ARUR, ARUD ECM suites; + TSM 2233D, TSM 2933D sonars, DR-3000 ECM suite
Naval service: No significant events.

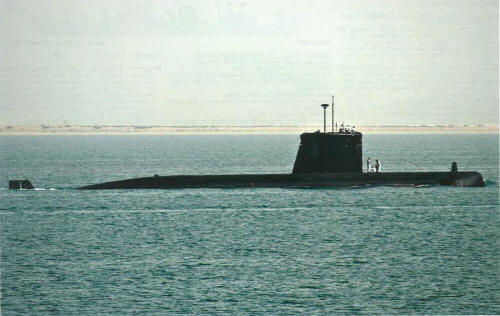

Hurmat 2008
