PAKISTAN NAVY (PAKISTAN)

MINE WARFARE SHIPS

MAHMOOD coastal minesweepers (1956-1963)

Mahmood 1965

Name No Yard No Builder Laid down Launched Comp Fate
محمود [Mahmood] M160   Quincy Adams, Quincy, USA     4.1957 stricken 1995
مومن [Momin] M161   Peterson Builders, Sturgeon Bay, USA     7/1962 stricken 1983
مبارک [Mubarak] M162   Hodgdon Bros, East Boothbay, USA     1/1957 stricken 1983
محافظ [Muhafiz] M163   Bellingham SY, USA     2/1955 sunk 4.12.1971
مجاہد [Mujahid] M164   Hodgdon Bros, East Boothbay, USA     10/1956 stricken 1990
مختار [Mukhtar] M165   Bellingham SY, USA     7/1959 stricken 1995
منصف [Munsif] M166   Bellingham SY, USA     4/1959 stricken 1979
موشل [Moshal] M167   Peterson Builders, Sturgeon Bay, USA     6/1963 stricken 1983



Displacement standard, t

360

Displacement full, t

400

Length, m

42.1 wl 44.3 oa

Breadth, m

8.10

Draught, m

2.10

No of shafts

2

Machinery

2 General Motors diesels

Power, h. p.

880

Max speed, kts

12

Fuel, t

diesel oil

Endurance, nm(kts)

2500(10)

Armament

1 x 2 - 20/70 Mk 24, mechanical, acoustic, magnetic minesweeping gear

Sensors

SPS-53 radar, UQS-1 sonar

Complement

39

Project history: US Bluebird class, built under MAP. Momin and Moshal had lower bridges than the other six.

Modernizations: None.

Naval service: No significant events.

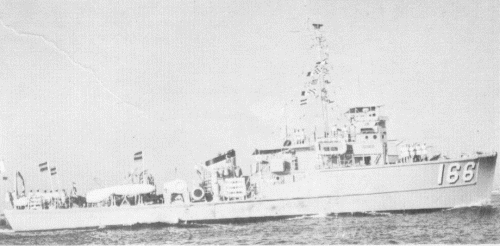

Munsif 1972
