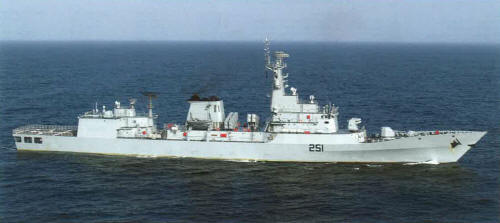

Zulfiquar 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| زوفیقوار [Zulfiquar] | F251 | Hudong, Shanghai, China | 24.7.2007 | 7.4.2008 | 30.7.2009 | in service (2019) | |
| شمشیر [Shamsheer] | F252 | Hudong, Shanghai, China | 4.2008 | 31.10.2008 | 19.12.2009 | in service (2019) | |
| سیف [Saif] | F253 | Hudong, Shanghai, China | 4.11.2008 | 28.5.2009 | 15.9.2010 | in service (2019) | |
| اسلت [Aslat] | F254 | KSEW, Karachi | 10.12.2009 | 16.6.2011 | 3.9.2013 | in service (2019) | |
| F255 | KSEW, Karachi | 2016 | 2018 | 2019 | building (2019) | ||
| F256 | KSEW, Karachi | 2016 | 2018 | 2019 | building (2019) |
|
Displacement standard, t |
2400 |
|
Displacement full, t |
3140 |
|
Length, m |
111.0 pp 123.0 oa |
|
Breadth, m |
13.4 |
|
Draught, m |
4.80 |
|
No of shafts |
2 |
|
Machinery |
4 SEMT-Pielstick 16PA6STC diesels |
|
Power, h. p. |
28200 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4500(18) |
|
Armament |
2 x 4 C-802 SSM (8 YJ-82), 1 x 8 FM-90/HQ-7 SAM (16 HQ-7), 1 x 1 - 76/59 AK-176M, 2 x 7 - 30/77 type 730B, 2 x 3 - 324 B515 TT (ET52), 2 x 6 type 87 ASWRL, 1 helicopter (Z-9EC Haitun) |
|
Electronic equipment |
type 517H-1, type 363D, 2x type 1007, type 344, type 347, type 345 radars, e/o system, E5 sonar, NR-6A (RWD-8 + NJ-81-3) ECM suite, 4x decoy RL, ZKJ-3C CCS |
|
Complement |
202 |
Project history: Chinese Jiangwei-II (F-22P) class, ordered as replacement for obsolete Leander and Amazon classes. FM-90 is the export designation for the Chinese HQ-7 SAM.
Modernizations: None.
Naval service: No significant events.
Zulfiquar 2013
