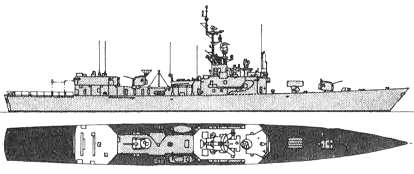

Saif 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| سیف [Saif] (ex-Garcia) | F264 | Bethlehem, San Francisco, USA | 16.10.1962 | 31.10.1963 | 21.12.1964 // 31.1.1989 | returned 1.1994 | |
| اسلت [Aslat] (ex-O'Callahan) | F265 | Defoe, Bay City, USA | 19.2.1964 | 20.10.1965 | 13.7.1968 // 8.2.1989 | returned 11.1993 | |
| حارباح [Harbah] (ex-Brumby) | F266 | Avondale, Westwego, USA | 1.8.1963 | 6.6.1964 | 5.8.1965 // 31.3.1989 | returned 11.1993 | |
| سیققات [Siqqat] (ex-Koelsch) | F267 | Defoe, Bay City, USA | 19.2.1965 | 8.6.1965 | 10.6.1967 // 31.5.1989 | returned 11.1993 |
|
Displacement standard, t |
2441 |
|
Displacement full, t |
3371 |
|
Length, m |
118.9 wl 126.2 oa |
|
Breadth, m |
13.4 |
|
Draught, m |
7.30 |
|
No of shafts |
1 |
|
Machinery |
F264, 266: 1 set Westinghouse geared steam turbines, 2 Foster Wheeler pressure-fired boilers F265, 267: 1 set General Electric geared steam turbines, 2 Foster Wheeler pressure-fired boilers |
|
Power, h. p. |
35000 |
|
Max speed, kts |
27 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 4000(20) |
|
Armament |
F264, 266: 1 x 8 ASROC Mk 116 ASuR (8 RUR-5), 2 x 1 - 127/38 Mk 30, 2 x 3 - 324 Mk 32 TT (18), 1 helicopter (Alouette III) F265, 267: 1 x 8 ASROC Mk 116 ASuR (16 RUR-5), 2 x 1 - 127/38 Mk 30, 2 x 3 - 324 Mk 32 TT (18), 1 helicopter (Alouette III) |
|
Electronic equipment |
F264, 266: LN-66, SPS-10, SPS-40, SPG-35 radars, SQS-26 sonar, WLR-6, ULQ-6 ECM suites, 2x Mk 33 BOC decoy RL, T-Mk 6 Fanfare torpedo decoy F265: LN-66, SPS-10, SPS-40, SPG-35 radars, SQS-26B sonar, WLR-6, ULQ-6 ECM suites, 2x Mk 33 BOC decoy RL, T-Mk 6 Fanfare torpedo decoy F267: LN-66, SPS-10, SPS-40, SPG-35 radars, SQS-26B sonar, WLR-6, ULQ-6 ECM suites, 2x Mk 33 BOC decoy RL, T-Mk 6 Fanfare torpedo decoy, NTDS CCS |
|
Complement |
270 |
Project history: Former USN Garcia class frigates.
Modernizations: None.
Naval service: No significant events.
