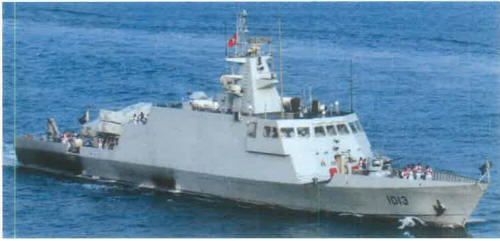

Azmat 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| عظمت [Azmat] | P1013 | Xinggang, Tianjin, China | 1.3.2011 | 23.9.2011 | 23.4.2012 | in service (2019) | |
| دہشت [Dehshat] | P1014 | KSEW, Karachi | 28.10.2011 | 16.8.2012 | 13.6.2014 | in service (2019) | |
| ہمت [Himmat] | P1027 | KSEW, Karachi | 11.8.2015 | 17.9.2016 | 2017 | in service (2019) | |
| iv | KSEW, Karachi | 2016 | 2017 | 2018 | building (2019) |
|
Displacement standard, t |
500 |
|
Displacement full, t |
600 |
|
Length, m |
63.0 |
|
Breadth, m |
8.80 |
|
Draught, m |
2.40 |
|
No of shafts |
4 |
|
Machinery |
4 diesels |
|
Power, h. p. |
|
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1000(18) |
|
Armament |
P1013, 1014: 2 x 4 C-802 SSM (8 YJ-82), 1 x 2 - 37/63 type 76A, 1 x 6 - 30/54 AK-630 P1027, ...: 2 x 3 Harbah SSM (6 Harbah), 1 x 6 - 30/54 AK-630, 1 x 1 - 25/92 STOP |
|
Electronic equipment |
type 360, type 347 radars, 2x RDC-32 decoy RL |
|
Complement |
14 |
Project history: Derivatives of the Chinese type 037-II. Fitted with stern gate for launch and recovery of the RIB.
Modernizations: None.
Naval service: No significant events.
Azmat 2012
