Shah Jehan 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| تیمر [Taimur] (ex-Chivalrous) | D21 | Denny, Dumbarton, UK | 11/1943 | 22.6.1945 | 5/1946 // 29.6.1954 | to United Kingdom 1960 | |
| عالمگیر [Alamgir] (ex-Creole) | D82, 1963- D160 | White, Cowes, UK | 8/1944 | 22.11.1945 | 10.1946 // 29.2.1956 | stricken 1982 | |
| جہانگیر [Jahangir] (ex-Crispin) | D168, 1963- D162 | White, Cowes, UK | 2/1944 | 23.6.1945 | 7.1946 // 29.2.1956 | stricken 1982 | |
| شاہ جہاں [Shah Jehan] (ex-Charity) | D29, 1963- D164 | Thornycroft, Woolston, UK | 7/1943 | 30.11.1944 | 11/1945 // 16.12.1958 | stricken 1982 |
|
Displacement standard, t |
1710 |
|
Displacement full, t |
2545 |
|
Length, m |
103.5 pp 110.6 oa |
|
Breadth, m |
10.9 |
|
Draught, m |
4.39 |
|
No of shafts |
2 |
|
Machinery |
2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers |
|
Power, h. p. |
40000 |
|
Max speed, kts |
36.75 |
|
Fuel, t |
oil 588 |
| Endurance, nm(kts) | 4675(20) |
|
Armament |
3 x 1 - 114/45 Mk 5, 1 x 2 - 40/60 Mk 5, 4 x 1 - 40/60 Mk 3, 1 x 4 - 533 TT, 2 x 3 - 305 Squid Mk 3 ASWRL |
|
Electronic equipment |
type 275, type 293, Decca nav. radars, type 170, type 174 sonars |
|
Complement |
200 |
Project history: Former RN 'Co' and 'Cr' class destroyers, all were modernized before transfer. Alamgir and Jahangir were handed over by Pakistan Navy after modernization 18.3.1958 and 20.6.1958 respectively.
Modernizations: None.
Naval service: No significant events.

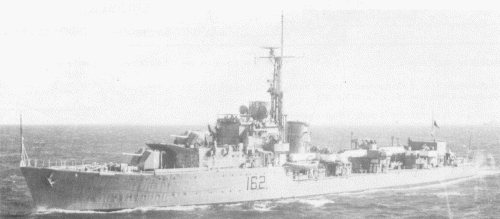

Jahangir 1977
