Badr 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| بدر [Badr] (ex-Gabbard) | D47, 1963- D161 | Swan Hunter, Wallsend, UK | 5/1943 | 16.3.1945 | 4/1946 // 29.2.1956 | MSA 1985, stricken 1989 | |
| خیبر [Khaibar] (ex-Cadiz) | D79, 1963- D163 | Fairfield, Govan, UK | 2/1944 | 16.9.1944 | 12/1946 // 29.2.1956 | sunk 5.12.1971 |
|
Displacement standard, t |
2325 |
|
Displacement full, t |
3361 |
|
Length, m |
108.2 pp 115.5 oa |
|
Breadth, m |
12.3 |
|
Draught, m |
4.62 deep load |
|
No of shafts |
2 |
|
Machinery |
2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers |
|
Power, h. p. |
50000 |
|
Max speed, kts |
35.75 |
|
Fuel, t |
oil 727, diesel oil 40 |
| Endurance, nm(kts) | 4400(20) |
|
Armament |
2 x 2 - 114/45 Mk 4, 2 x 2 - 40/60 Mk 5, 2 x 2 - 40/60 STAAG Mk 2, 4 x 1 - 40/60 Mk 3, 2 x 4 - 533 TT, 1 x 3 - 305 Squid Mk 3 ASWRL |
|
Electronic equipment |
2x type 262, type 275, 2x type 282, type 291, type 293 radars, type 144Q, type 147B sonars |
|
Complement |
186 - 222 |
Project history: British 'Battle' class destroyers, modernized and refitted with US MDAP funds. Badr was handed over by Pakistan Navy 24.1.1957, and Khaibar 1.2.1957.
Modernizations: 1970s, Badr: - 2 x 2 - 40/60 STAAG, 1 x 1 - 40/60, 1 x 4 - 533 TT, type 262, 2x type 282, type 291 radars, type 144Q, type 147B sonars; + type 975, SNW-10 radars, type 170, type 174 sonars
Naval service: Khaibar was sunk 5.12.1971 off Karachi by Indian missile FAC of Project 205. Badr became HQ ship of the new Maritime Safety Agency in 1985.

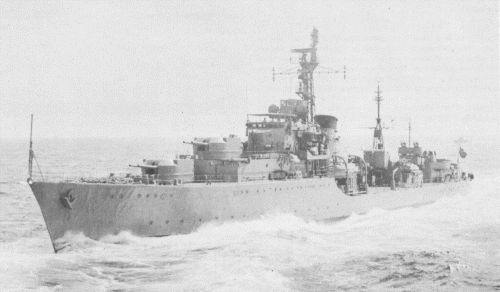

Badr 1977
© Ivan Gogin, 2016
