Names |
P551, 1987- P551 ساد [Sadd] P552, 1987- P552 شہباز [Shahbaz] P553, 1987- P553 وقار [Waqar] P554, 1987- P554 برق [Burq] P555 - 568 |
|
Builders |
Crestitalia, Ameglia, Italy: P551-568 |
|
Commissioned |
1979-1980: P551-568 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): P551-568 |
|
Displacement standard, t |
|
|
Displacement full, t |
23 |
|
Length, m |
16.5 |
|
Breadth, m |
5.20 |
|
Draught, m |
0.88 |
|
No of shafts |
2 |
|
Machinery |
P551-554: 2 MTU diesels P555-568: 2 V6 diesels |
|
Power, h. p. |
P551-554: 2200 P555-568: 1600 |
|
Max speed, kts |
P551-554: 35 P555-568: 30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
425(25) |
|
Armament |
P551-554: 1 x 1 - 20/70 Mk 7 P555-568: 1 x 1 - 14.5/93 |
|
Electronic equipment |
radar |
|
Complement |
5 |
Project history: MV55 design. GRP hull. Customs service. 4 boats were in 1987 transferred to Coast Guard.
Modernizations: None.
Naval service: No significant events.

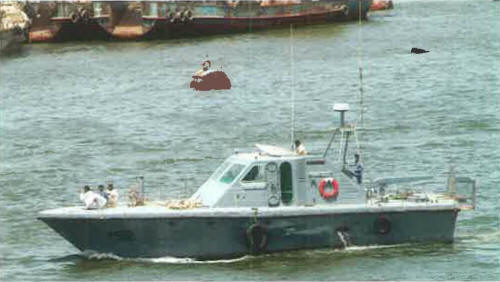

Shahbaz 2003
