PAKISTAN NAVY (PAKISTAN)

NON-NAVAL FORCES

BARKAT patrol craft (1989-1990)

Name No Yard No Builder Laid down Launched Comp Fate
برکت [Barkat] P60, later- 1060   Huangpu, Guangzhou, China 21.10.1988   29.12.1989 in service (2019)
رحمت [Rehmat] P61, later- 1061   Huangpu, Guangzhou, China 21.10.1988   29.12.1989 in service (2019)
نصرت [Nusrat] P62, later- 1062   Huangpu, Guangzhou, China     13.6.1990 in service (2019)
وحدت [Vehdat] P63, later- 1063   Huangpu, Guangzhou, China     13.6.1990 in service (2019)



Displacement standard, t

390

Displacement full, t

435

Length, m

58.8

Breadth, m

7.20

Draught, m

2.40 mean hull

No of shafts

4

Machinery

4 MTU 16V396 TB93 diesels

Power, h. p.

8700

Max speed, kts

27

Fuel, t

diesel oil

Endurance, nm(kts) 1800(18)

Armament

1 x 2 - 37/63 type 74, 2 x 2 - 14.5/93

Electronic equipment

2x OPS-9 or ARC-32A radars

Complement

50

Project history: Built on hulls of Chinese type 037 craft. Maritime Security Agency.

Modernizations: None.

Naval service: No significant events.

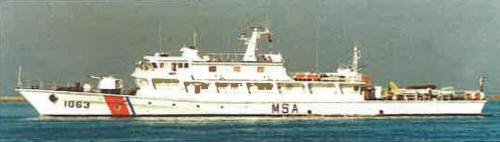

Vehdat 1994
