| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| ضرر [Zarrar] | P03 | Yonca-Onuk, Tuzla, Turkey | 26.11.2007 | in service (2019) | |||
| قرار [Karrar] | P04 | Yonca-Onuk, Tuzla, Turkey | 11.4.2008 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
124 |
|
Length, m |
33.0 pp 35.6 oa |
|
Breadth, m |
6.70 |
|
Draught, m |
1.40 |
|
No of shafts |
3 waterjets |
|
Machinery |
CODAG: 1 Honeywell TF50 gas turbine + 2 MTU 12V4000 M90 diesels |
|
Power, h. p. |
7400 |
|
Max speed, kts |
60 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
850(36) |
|
Armament |
2 x 2 Harpoon SSM (4 RGM-84C, provision for), 2 x 1 - 12.7/90 |
|
Sensors |
Raytheon radar |
|
Complement |
20 |
Project history: Turkish Kaan 33 (MRTP 33) design. Built using composites, carry a small stern-launched RIB.
Modernizations: None.
Naval service: No significant events.

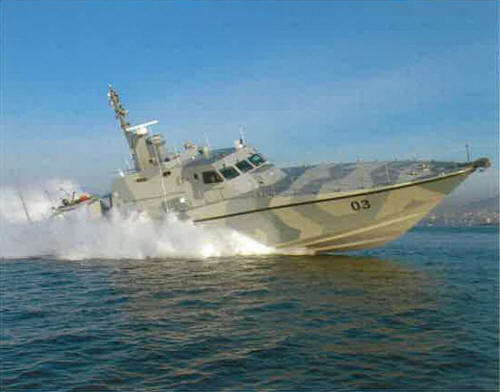

Zarrar 2007
