SDML3518 1950
|
Names |
HDML1261 - 1263, 1949- SDML1261 - 1263, 1951- P3517 - 3519 HDML1266, 1949- SDML1266, 1950 - P3520 |
|
Builders |
Bombay DYd, India: HDML1261 - 1263 Mohatta, Karachi: HDML1266 |
|
Completed |
1944 // 1948: HDML1266 1945 // 1948: HDML1261 - 1263 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1965: SDML3518, 3519 1975: SDML3517 1977: SDML3520 |
|
Displacement standard, t |
46 |
|
Displacement full, t |
54 |
|
Length, m |
22.0 |
|
Breadth, m |
4.83 |
|
Draught, m |
1.40 deep load |
|
No of shafts |
2 |
|
Machinery |
2 Thornycroft diesels |
|
Power, h. p. |
260 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil 7500 l |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 47/40 Mk I, 1 x 1 - 20/70 Mk III, 2 x 2 - 7.7/94, 8 DC |
| Electronic equipment | type 291U radar (some), type 134 sonar |
|
Complement |
10 |
Project history: Wooden-hulled round-bilge boats with good seaworthiness. HDML class.
Modernizations: None.
Naval service: No significant events.

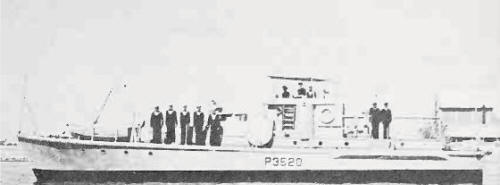

SDML3520 1965
© Ivan Gogin, 2016
