similar Jalalat 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| جُرات [Jurrat] | P1023 | Karachi NSY | 9.9.2004 | 24.2.2006 | in service (2019) | ||
| قوت [Quwwat] | P1028 | Karachi NSY | 13.9.2004 | 24.2.2006 | in service (2019) |
|
Displacement standard, t |
155 |
|
Displacement full, t |
185 |
|
Length, m |
38.9 |
|
Breadth, m |
8.00 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 MTU diesels |
|
Power, h. p. |
5985 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(17) |
|
Armament |
2 x 2 C-802 SSM (4 YJ-2), 1 x 2 - 25/80 type 61M |
|
Sensors |
type 348, type 756 radars, DR-3000 ECM suite, type 945G decoy RL |
|
Complement |
31 |
Project history: Based on the Jalalat class. Steel hull with aluminium superstructures.
Modernizations: 2008, both: - type 945G decoy RL; + MASS decoy RL
Naval service: No significant events.

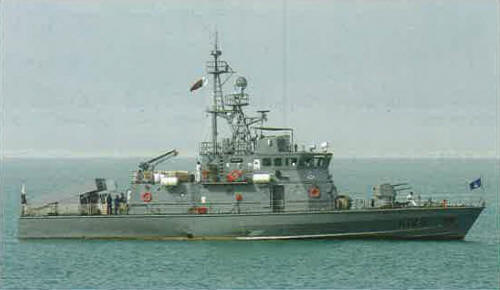

Jurrat 2010
