Jalalat 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| جلالت [Jalalat] | P1029 | Karachi NSY | 16.11.1996 | 14.8.1997 | in service (2019) | ||
| شجاعت [Shujaat] | P1030 | Karachi NSY | 26.3.1999 | 29.9.1999 | in service (2019) |
|
Displacement standard, t |
170 |
|
Displacement full, t |
200 |
|
Length, m |
39.0 |
|
Breadth, m |
6.70 |
|
Draught, m |
1.70 |
|
No of shafts |
2 |
|
Machinery |
2 MTU diesels |
|
Power, h. p. |
5985 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(17) |
|
Armament |
2 x 2 C-802 SSM (4 YJ-2), 1 x 2 - 37/63 type 76A88 |
|
Sensors |
type 756, SR-47, type 347 radars, RW-28CB ECM suite, type 945G decoy RL |
|
Complement |
35 |
Project history: Design as based on patrol craft Larkana, with Chinese armament and sensors.
Modernizations: None.
Naval service: No significant events.

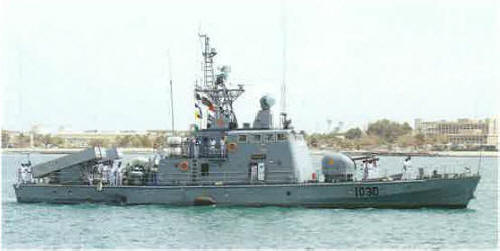

Shujaat 2012
