Haibat 1985
|
Names |
P1021 ہیبت [Haibat] P1022 جلالت [Jalalat] P1023 جُرات [Jurat] P1024 شجاعت [Shujaat] |
|
Builders |
Wuhu SY, China or Chuangxin SY, China: P1021-1024 |
|
Commissioned |
1965-1976 // 10.1981: P1021, 1022 1965-1976 // 5.1982: P1023, 1024 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1997: P1022 1998: P1021, 1023, 1024 |
|
Displacement standard, t |
68 |
|
Displacement full, t |
74 |
|
Length, m |
27.0 |
|
Breadth, m |
6.50 |
|
Draught, m |
1.30 mean hull 1.80 propellers |
|
No of shafts |
4 |
|
Machinery |
4 M50F-4 (L-12V-180) diesels |
|
Power, h. p. |
4800 |
|
Max speed, kts |
37 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
500(24) |
|
Armament |
2 x 1 C-201 SSM (2 HY-2), 1 x 2 - 25/80 type 61 |
|
Sensors |
type 352 radar |
|
Complement |
17 |
Project history: Former Chinese type 024 boats, derivatives of Russian project 183R. Wooden hull.
Modernizations: None.
Naval service: No significant events.

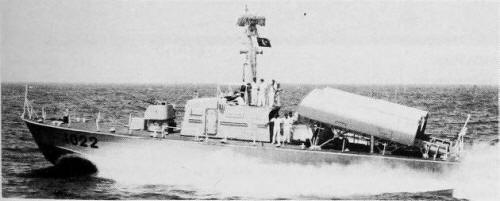

Jalalat 1983
