Nasr Al Bahr 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| نصر البحر [Nasr Al Bahr] | L2, 2003- A2 | Broke Marine, Lowestoft, UK | 1983 | 16.5.1984 | 6.2.1985 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
2500 |
|
Length, m |
80.0 pp 93.0 oa |
|
Breadth, m |
15.5 |
|
Draught, m |
2.60 |
|
No of shafts |
2 |
|
Machinery |
2 Paxman Valents 18RP200 diesels |
|
Power, h. p. |
7800 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
5000(15) |
|
Armament |
1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90, helicopter deck |
| Military load | 2 LCVP, 650 t cargo or 7 tanks, 240 troops |
|
Electronic equipment |
Decca 1226, Decca 1290 radars, 9LV100, Lynx e/o systems, 2x SuperBarricade decoy RL |
|
Complement |
108 |
Project history: Sister-ship of Algerian Kalaat class, ordered in 1982. Has 75.0x7.4m vehicle deck equipped with 18.0x5.0m bow and 4.0x5.0m stern ramps. 16 t travelling crane, 2 Sea Truck type LCVPs are handled by them. Helicopter deck can accommodate Sea King / Commando or Super Puma helicopter.
Modernizations: None.
Naval service: No significant events.

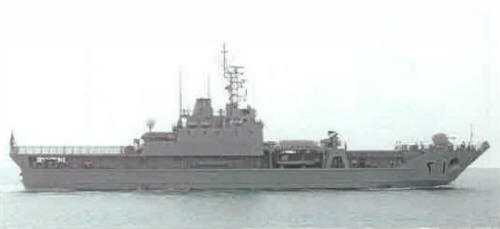

Nasr Al Bahr 2010
© Ivan Gogin, 2020
