Al Munassir 1985
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| المناصير [Al Munassir] | L1 | Broke Marine, Lowestoft, UK | 4.7.1977 | 25.7.1978 | 3.4.1979 | non-operational mid-1990s |
|
Displacement standard, t |
|
|
Displacement full, t |
2169 |
|
Length, m |
81.3 pp 84.0 oa |
|
Breadth, m |
15.0 |
|
Draught, m |
2.15 max |
|
No of shafts |
2 |
|
Machinery |
2 Mirrless-Blackstone ESL8MGR diesels |
|
Power, h. p. |
2400 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2500(12) |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 20/90 GAM-B01, helicopter deck |
| Military load | 550 t cargo or 8 tanks, 188 troops |
|
Electronic equipment |
Decca TM1229 radar, Sea Archer e/o system |
|
Complement |
47 |
Project history: Equipped with bow doors and ramp for beaching. Bluff-bowed hull shape. Carried 16t travelling crane which spanned helicopter deck. Large helicopter deck can accommodate Sea King \ Commando helicopters.
Modernizations: None.
Naval service: No significant events.

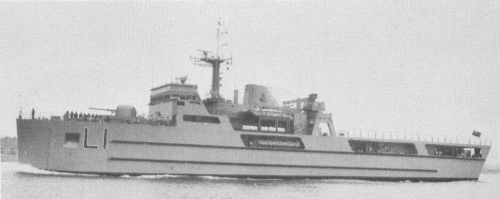

Al Munassir 1979
