Al Wafi 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| الوافي [Al Wafi] | B4 | Broke Marine, Lowestoft, UK | 24.3.1977 | stricken 1995 | |||
| الفلك [Al Fulk] | B5 | Broke Marine, Lowestoft, UK | 24.3.1977 | stricken 1995 | |||
| المجاهد [Al Mujaheed] | B6 | Broke Marine, Lowestoft, UK | 20.7.1977 | stricken 1995 | |||
| الجبار [Al Jabbar] | B7 | Broke Marine, Lowestoft, UK | 6.10.1977 | stricken 1995 |
|
Displacement standard, t |
153 |
|
Displacement full, t |
166 |
|
Length, m |
37.5 |
|
Breadth, m |
6.86 |
|
Draught, m |
1.78 |
|
No of shafts |
2 |
|
Machinery |
2 Paxman Ventura 16RP200 diesels |
|
Power, h. p. |
4800 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3250(12) |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 20/90 GAM-B01, 2 x 1 - 7.6/90 |
|
Electronic equipment |
Decca 1226 or Decca 1229 radar, Sea Archer e/o system |
|
Complement |
27 |
Project history: Ordered in 1974. Brooke Marine 37.5m class.
Modernizations: None.
Naval service: No significant events.

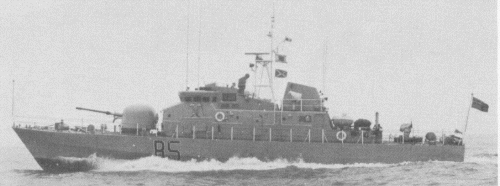

Al Fulk 1978
