Names |
B20 السيب [Al Seeb], 2003- Z20 السيب [Al Seeb] B21 الشينس [Al Shinas], 2003- Z21 الشينس [Al Shinas] B22 الساده [Al Sadh], 2003- Z22 الساده [Al Sadh] B23 الخصب [Al Khasab], 2003- Z23 الخصب [Al Khasab] |
|
Builders |
Vosper Pty, Singapore: B20-23 |
|
Commissioned |
1981: B20-23 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2015: Z20, 21 2016: Z22, 23 |
|
Displacement standard, t |
60 |
|
Displacement full, t |
75 |
|
Length, m |
23.0 pp 25.0 oa |
|
Breadth, m |
5.80 |
|
Draught, m |
1.60 |
|
No of shafts |
3 |
|
Machinery |
2 MTU 12V331 TC92 diesels + 1 Cummins N855M diesel |
|
Power, h. p. |
3072 + 197 = 3072 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2300(8) |
|
Armament |
1 x 1 - 20/90 GAM-B01, 2 x 1 - 7.6/90 |
|
Electronic equipment |
Decca 1226 radar |
|
Complement |
14 |
Project history: Craft had been completed in 1980 on speculation by builder and ordered in 1981. GRP hull.
Modernizations: None.
Naval service: No significant events.

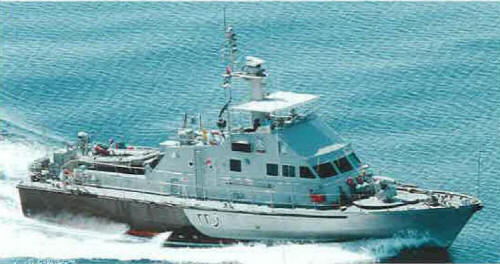

Al Sadh 2004
