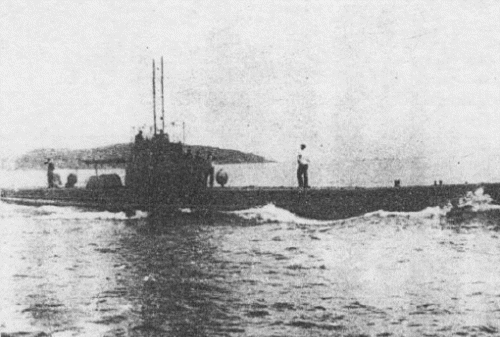

A2 submarines (1914)

A2 1940

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
A2			Germaniawerft, Kiel, Germany	1911	1913	1914	captured by Germany 9.4.1940, BU
A3			Germaniawerft, Kiel, Germany	1911	1913	1914	scuttled 15.4.1940
A4			Germaniawerft, Kiel, Germany	1911	1913	1914	scuttled 15.4.1940
A5			Germaniawerft, Kiel, Germany	10.1912	9.5.1914	8.1914 // ---	completed for Germany 8.1914 (U0, later UA)

Displacement standard, t
250

Displacement normal, t

268 / 342

Length, m

46.5

Breadth, m

4.80

Draught, m

2.70

No of shafts

2

Machinery

2 Germania diesels / 2 electric motors

Power, h. p.

700 / 380

Max speed, kts

14.5 / 9

Fuel, t

diesel oil 13

Endurance, nm(kts) 900(10) / 76(3)

Armament

3 - 450 TT (2 bow, 1 stern, 5)

Complement

17

Diving depth operational, m 50

Project history: These submarines were built under Norwegian order in Germany. The contract provided building of four boats, but with the First World War beginning, last submarine (A5) has been requisitioned by Germans and commissioned them under name U0 (later UA). Successful for time, but to the beginning of WWII they have ultimately become outdated.

Modernizations: None.

Naval service: A2 was captured by Germans in Oslo-fjord at Bulerne island 9.4.1940 and sold by them for scrap. A3 and A4 were scuttled by own crews 15.4.1940 in the Verk-bay (Tönsberg-fjord).

ROYAL NORWEGIAN NAVY (NORWAY)

SUBMARINES

A2 submarines (1914)

Displacement standard, t	250
Displacement normal, t	268 / 342
Length, m	46.5
Breadth, m	4.80
Draught, m	2.70
No of shafts	2
Machinery	2 Germania diesels / 2 electric motors
Power, h. p.	700 / 380
Max speed, kts	14.5 / 9
Fuel, t	diesel oil 13
Endurance, nm(kts)	900(10) / 76(3)
Armament	3 - 450 TT (2 bow, 1 stern, 5)
Complement	17
Diving depth operational, m	50
