Names |
KA1 Trondernes, 2004- L4510 Trondernes KA2 Hysnes, 2004- L4511 Hysnes KA3 Hellen, 2004- L4512 Hellen KA4 Torås, 2004- L4513 Torås KA5 Møvik, 2004- L4514 Møvik KA11 Skrolsvik, 2004- L4520 Skrolsvik KA12 Kråkenes, 2004- L4521 Kråkenes KA13 Stangnes, 2004- L4522 Strangnes KA14 Kjøkøy, 2004- L4523 Kjøkøy KA15 Mørvika, 2004- L4524 Mørvika KA16 Kopås, 2004- L4525 Kopås KA17 Tangen, 2004- L4526 Tangen KA18 Oddane, 2004- L4527 Oddane KA19 Malmøya, 2004- L4528 Malmøya KA20 Nidaros KA21 Brettingen, 2004- L4529 Brettingen KA22 Løkhaug, 2004- L4530 Løkhaug KA23 Sørviknes, 2004- L4531 Sørviknes KA30 Bjørgvin KA31 Osternes, 2004- L4532 Osternes KA32 Fjell, 2004- L4533 Fjell KA33 Lerøy, 2004- L4534 Lerøy KA43 Torgauten |
|
Builders |
Dockstavarvet, Docksta, Sweden: KA1-4 Mjellem & Karlsen, Bergen // Westamarin, Alta: KA5, 11-23, 30-33, 43 |
|
Completed |
1996: KA1-4 1997: KA5, 11, 12 1998: KA13-23, 30, 31 1999: KA32, 33, 43 |
|
Losses |
KA30 Bjørgvin (accident 1.2002) |
|
Transfers |
none |
|
Discarding |
2002-2003: KA20, 30, 43 2010: L4529, 4530, 4533, 4534 2013: L4510, 4511, 4523, 4524, 4528 in service (2019): L4512-4514, 4520-4522, 4525-4527, 4531, 4532 |
|
Displacement standard, t |
13 |
|
Displacement full, t |
20 |
|
Length, m |
13.0 pp 15.9 oa |
|
Breadth, m |
3.80 |
|
Draught, m |
1.10 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 Volvo-Scania DSI14 diesels |
|
Power, h. p. |
1250 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil 2.5 |
| Endurance, nm(kts) | 250(30) |
|
Armament |
1 x 1 - 12.7/90 |
| Military load |
20 troops or 2.8t cargo |
| Electronic equipment | Decca 110 radar |
| Complement | 3 |
Project history: Swedish CB90H design. Bow ramp.
Modernizations: None.
Naval service: No significant events.

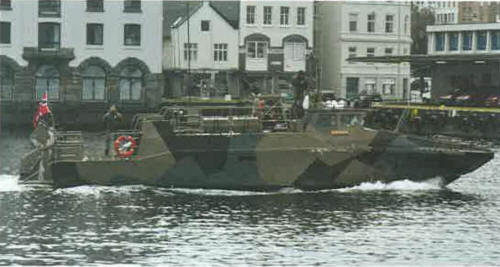

Skrolsvik 2014
