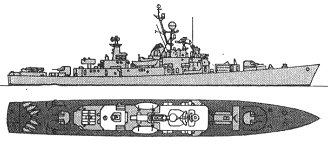

Oslo 1970

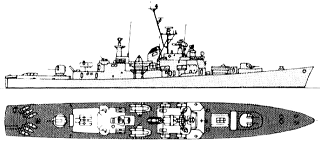

Oslo 1980
Bergen 2005
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Oslo | F300 | MHV Horten | 1963 | 17.1.1964 | 29.1.1966 | wrecked 25.1.1994 | |
| Bergen | F301 | MHV Horten | 1964 | 23.8.1965 | 15.6.1967 | decommissioned 8.2005 | |
| Trondheim | F302 | MHV Horten | 1963 | 4.9.1964 | 2.6.1966 | decommissioned 6.2006 | |
| Stavanger | F303 | MHV Horten | 1965 | 4.2.1966 | 1.12.1967 | in reserve 4.1999, sunk as target 14.6.2002 | |
| Narvik | F304 | MHV Horten | 1964 | 8.1.1965 | 30.11.1966 | decommissioned 8.2007 |
|
Displacement standard, t |
1450 |
|
Displacement full, t |
1760 |
|
Length, m |
93.9 pp 96.6 oa |
|
Breadth, m |
11.2 |
|
Draught, m |
5.30 |
|
No of shafts |
1 |
|
Machinery |
1 set STAL-De Laval double reduction geared steam turbines, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
20000 |
|
Max speed, kts |
25 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 4500(15) |
|
Armament |
2 x 2 - 76/50 Mk 33, 1 x 6 - 375 Terne III ASWRL, 2 - 533 TT, helicopter deck, 1 DCR (6) |
|
Electronic equipment |
DRBV-22 (MRDR-45), M22, Decca 1226 radars, Terne Mk III, SQS-36 sonar |
|
Complement |
150 |
Project history: Built under a five-year naval programme voted in 1960, half the cost being carried by the United States. Based on the design of US Dealey class destroyer escorts, but with many modifications, including increased freeboard forward to suit sea conditions off the Norwegian coast.
Modernizations: 1972-1976, all: - 2 - 533 TT, helicopter deck; + 6 x 1 Penguin Mk 1 SSM (6 Penguin Mk 1), 1 x 8 NATO-Sea Sparrow SAM (24 RIM-7M), 2 x 3 - 324 TT, Mk 95 radar
11/1987, Trondheim; 10.1988, Narvik; 6.1989, Stavanger; 4.1990, Bergen; 2.1991, Oslo: - 2 x 1 Penguin Mk 1 SSM, 1 x 2 - 76/50, DRBV-22, M22 radars, SQS-36 sonar; + 1 x 1 - 40/70 Bofors 350, AWS-9, 9LV200 Mk 2 radars, VIGY20 e/o system, TSM2633 Spherion Mk 1 hull-mounted+VDS sonar, APECS, Nera SR-1A ECM suites, 2x decoy RL
Naval service: Oslo ran aground 24.1.1994 near Marstein island. The next day she was taken under tow and sank later on the same day in Korsfjorden off Steinneset.

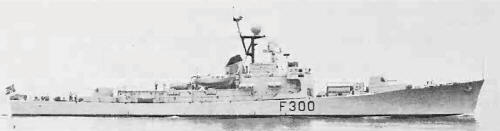

Oslo 1972

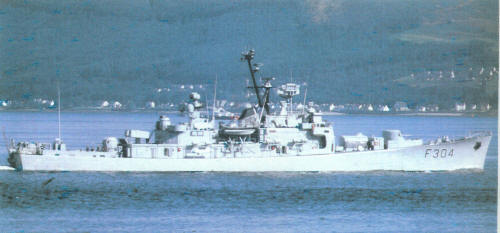

Narvik 2003
