Frithjof 1905
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Frithjof | Horten verft | 1895 | 15.11.1895 | 1896 | cadet TS 1908, stricken 1928 |
|
Displacement normal, t |
1360 |
|
Displacement full, t |
1427 |
|
Length, m |
68.2 |
|
Breadth, m |
9.98 |
|
Draught, m |
4.01 max |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 6 cylindrical boilers |
|
Power, h. p. |
2800 |
|
Max speed, kts |
15 |
|
Fuel, t |
coal 160 |
| Endurance, nm(kts) | 2300(10) |
|
Armour, mm |
Harvey; deck: 30 |
|
Armament |
2 x 1 - 120/44 Armstrong Y, 4 x 1 - 76/40 Armstrong N, 4 x 1 - 37/45 Hotchkiss, 1 - 450 TT (bow) |
|
Complement |
154 |
Project history: Officially classified as protected cruiser, since 1908 TS. Really was a seagoing gunboat.
Protection: Armoured thin 30mm deck protected machinery.
Modernizations: None.
Naval service: Frithjof was converted to cadet TS in 1908.

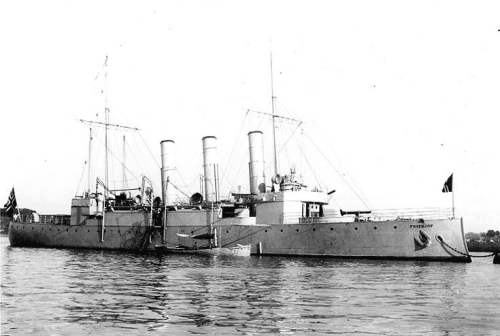

Frithjof 1900
