SVALBARD coast guard ship (2002)

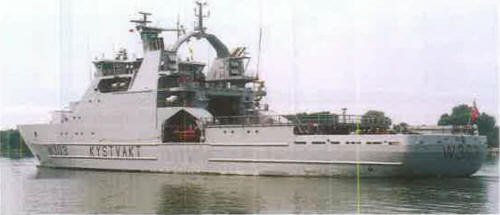

Svalbard 2005

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Svalbard	W303		Tangen Verft, Krageroe		17.2.2001	5.1.2002	in service (2019)

Displacement standard, t
4200

Displacement full, t
6300

Length, m
103.7

Breadth, m
19.1

Draught, m
6.50

No of shafts
2 azipods

Machinery

4 Ulstein-Bergen BRG8 diesel-generators, 2 ABB electric motors

Power, h. p.

13600

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts) 10000(13)

Armament
1 x 1 - 57/70 SAK-57 Mk 1, 1 helicopter (Lynx)

Electronic equipment TRS-3D 16ES, nav. radars, EDO CMS CCS

Complement
50

Project history: Intended for northern service with an icebreaking hull capable to break 1m ice. Really can handle one NH90 or two Lynx helicopters.

Modernizations: None.

Naval service: No significant events.

Svalbard 2003

ROYAL NORWEGIAN NAVY (NORWAY)

FISHERY PROTECTION AND COAST GUARD SHIPS

SVALBARD coast guard ship (2002)

Displacement standard, t	4200
Displacement full, t	6300
Length, m	103.7
Breadth, m	19.1
Draught, m	6.50
No of shafts	2 azipods
Machinery	4 Ulstein-Bergen BRG8 diesel-generators, 2 ABB electric motors
Power, h. p.	13600
Max speed, kts	18
Fuel, t	diesel oil
Endurance, nm(kts)	10000(13)
Armament	1 x 1 - 57/70 SAK-57 Mk 1, 1 helicopter (Lynx)
Electronic equipment	TRS-3D 16ES, nav. radars, EDO CMS CCS
Complement	50
