NORNEN fishery protection ship (1963)

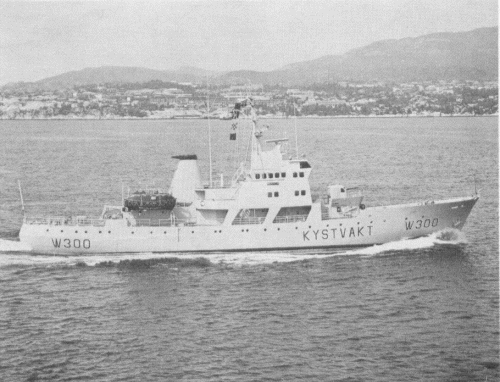

Nornen 1970

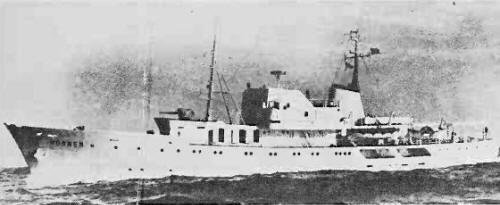

Nornen 1985

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Nornen	W300		Mjellem & Karlsen, Bergen		20.8.1962	1/1963	stricken 2002

Displacement standard, t
930

Displacement full, t
1060

Length, m
61.5

Breadth, m
10.0

Draught, m
4.80

No of shafts
2

Machinery

4 diesels

Power, h. p.

3500

Max speed, kts

17

Fuel, t

diesel oil

Endurance, nm(kts)

Armament

1 x 1 - 76/50 Mk 21?, helicopter deck

Electronic equipment radar, sonar

Complement
32

Project history: Purpose built patrol ship. In 1977-1978 was completely rebuilt.

Modernizations: 1978: - 1 x 1 - 76/50; + 1 x 1 - 40/70 Bofors 350, displacement standard became 1030t.

Naval service: No significant events.

Nornen 1970

Nornen 1979

ROYAL NORWEGIAN NAVY (NORWAY)

FISHERY PROTECTION AND COAST GUARD SHIPS

NORNEN fishery protection ship (1963)

Displacement standard, t	930
Displacement full, t	1060
Length, m	61.5
Breadth, m	10.0
Draught, m	4.80
No of shafts	2
Machinery	4 diesels
Power, h. p.	3500
Max speed, kts	17
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 76/50 Mk 21?, helicopter deck
Electronic equipment	radar, sonar
Complement	32
