ROYAL NORWEGIAN NAVY (NORWAY)

FISHERY PROTECTION AND COAST GUARD SHIPS

NORDKAPP coast guard ships (1981-1982)

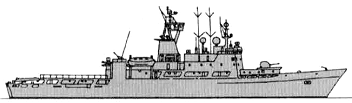

Nordkapp 2000

Name No Yard No Builder Laid down Launched Comp Fate
Nordkapp W320   Bergen MV   14.5.1980 25.4.1981 in service (2019)
Senja W321   Horten Verft   16.3.1980 6.3.1981 in service (2019)
Andenes W322   Haugesund Verksted   21.3.1981 30.1.1982 in service (2019)

Displacement standard, t

 2165

Displacement full, t

 3240

Length, m

 97.5 pp 105.5 oa

Breadth, m

 14.6

Draught, m

 4.55

No of shafts

 2

Machinery

4 Wichmann-Wärtsilä 9AXAG diesels

Power, h. p.

16180

Max speed, kts

23

Fuel, t

diesel oil 350
Endurance, nm(kts) 7500(15)

Armament

 1 x 1 - 57/70 SAK-57 Mk 1, 4 x 1 - 20/90 Mk 20 Rh202, 2 x 3 - 324 Mk 32 TT, 1 helicopter (Lynx)
Electronic equipment 2x Decca TM1226, Decca RM914, AWS-4, 9LV 200 Mk 2, 9LV218 Mk 2 radars, SM8312 e/o system, SS105 sonar

Complement

 48

Project history: In 1977 Naval Material Command requested two new types of EEZ patrol vessels, three of ice-strengthened type and four of normal type. Later budget was cut and only three type 320 ships were built. Only Nordkapp is strengthened for ice navigation. Ships can able for patrol, fire-fighting, anti-pollution, meteorological duties and can serve as escorts in wartime (they can be fitted with 6 Penguin Mk 2 SSMs).

Modernizations: 1997-1998, all: - 1 x 1 - 20/90; + 1 x 2 Simbad SAM (~8 Mistral), MSI-80S CCS

2000-2002, all: - 9LV200 Mk 2, AWS-4 radars, SS105 sonar, MSI-80S CCS; + SPS-67(v)3 radar, Vigy 20 e/o system, SP270 sonar, EDO CMS CCS

2006-2008, all: - 2 x 3 - 324 Mk 32 TT, 1 Lynx helicopter, SPS-67(v)3, 9LV Mk 218 Mk 2 radars; + 1 NH90 helicopter, TRS-3D 16ES radar

Naval service: No significant events.

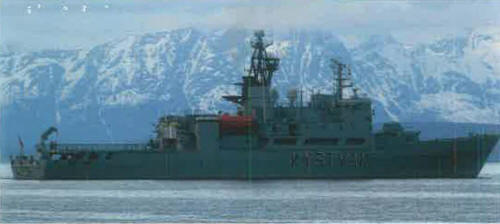

Senja 2014
