ROYAL NORWEGIAN NAVY (NORWAY)

FISHERY PROTECTION AND COAST GUARD SHIPS

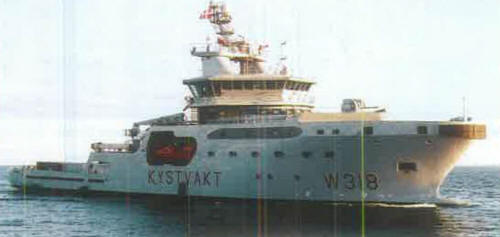

HARSTAD offshore patrol vessel (2005)

Harstad 2010

Name No Yard No Builder Laid down Launched Comp Fate
Harstad W318   Aker, Søviknes   2004 28.1.2005 in service (2019)

Displacement standard, t



Displacement full, t

 3130

Length, m

 70.9 pp 83.0 oa

Breadth, m

 15.5

Draught, m

 6.00

No of shafts

 2

Machinery

2 Bergen B32/40L8P diesels

Power, h. p.

10880

Max speed, kts

19

Fuel, t

diesel oil
Endurance, nm(kts) 10000(13)

Armament

 1 x 1 - 57/70 SAK-57 Mk 1
Electronic equipment Furuno FAR2837, Furuno FAR2817 radars

Complement

 26

Project history: Designed by Rolls-Royce Marine for firefighting, environmental and law enforcement, push-and-pull tug and SAR operations, also is compatible with NATO submarine rescue operations. 1000m³ polluted seawater tanks, 2 watercannons, 2 inspection launches, 400m² cargo area aft, 110t bollard pull.

Modernizations: None.

Naval service: No significant events.

Harstad 2012
