ROYAL NORWEGIAN NAVY (NORWAY)

FISHERY PROTECTION AND COAST GUARD SHIPS

BARENTSHAV offshore patrol vessels (2009-2010)

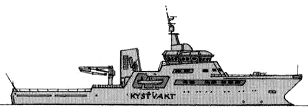

Barentshav 2010

Name No Yard No Builder Laid down Launched Comp Fate
Barentshav W340   Myklebust, Gursken   14.8.2008 24.8.2009 in service (2019)
Bergen W341   Myklebust, Gursken   6.5.2009 4.2.2010 in service (2019)
Sortland W342   Myklebust, Gursken   10.9.2009 5.7.2010 in service (2019)

Displacement standard, t

 3100

Displacement full, t

 4000

Length, m

 93.2

Breadth, m

 16.6

Draught, m

 6.20

No of shafts

 1

Machinery

CODLAD: 3 Mitsubishi GS16R diesel-generators + 1 Mitsubishi GS12R diesel-generator, 1 Scandinavian Electric electric motor + 1 Bergen B32/40L8P diesel

Power, h. p.

3540+870=3400 + 5440 = 8840

Max speed, kts

20

Fuel, t

diesel oil + liquid natural gas
Endurance, nm(kts) 10000(13)

Armament

 1 x 1 - 40/70 Bofors 315
Electronic equipment 2x radars

Complement

 16

Project history: Based on Vik-Sandvik VS794 design. Can be used for firefighting, environmental and law enforcement, push-and-pull tug and SAR operations, also for NATO submarine rescue operations. Built with unique diesel-liquid natural gas hybrid propulsion system. 110t bollard pull.

Modernizations: None.

Naval service: No significant events.

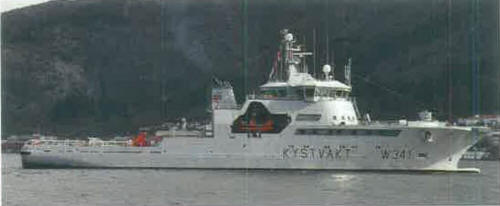

Bergen 2014
