Snøgg 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Snøgg | P980 | Westermoens BB, Mandal | 2.9.1969 | 1.1970 | stricken 1995 | ||
| Rapp | P981 | Westermoens BB, Mandal | 29.11.1969 | 8.1970 | stricken 1995 | ||
| Snar | P982 | Westermoens BB, Mandal | 2.2.1970 | 9.1970 | stricken 1995 | ||
| Rask | P983 | Westermoens BB, Mandal | 26.5.1970 | 11.1970 | stricken 1996 | ||
| Kvikk | P984 | Westermoens BB, Mandal | 9.10.1970 | 1.1971 | stricken 1996 | ||
| Kjapp | P985 | Westermoens BB, Mandal | 1970 | 4.1971 | stricken 1995 |
|
Displacement standard, t |
125 |
|
Displacement full, t |
138 |
|
Length, m |
36.5 |
|
Breadth, m |
6.20 |
|
Draught, m |
1.30 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V538 TB92 diesels |
|
Power, h. p. |
7200 |
|
Max speed, kts |
36 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
550(32) |
|
Armament |
4 x 1 Penguin Mk 1 SSM (4 Penguin Mk 1), 1 x 1 - 40/70 Bofors 350, 4 - 533 TT, 2 DCR |
|
Electronic equipment |
Decca TM626 radar |
|
Complement |
19 |
Project history: Generally similar to Storm class. Had TORI fire control system and can fire wire-guided torpedoes. Boats did not carry full complement of SSMs at all times.
Modernizations: 1970s, all: - TM626 radar; + Decca TM1226 radar
Naval service: No significant events.

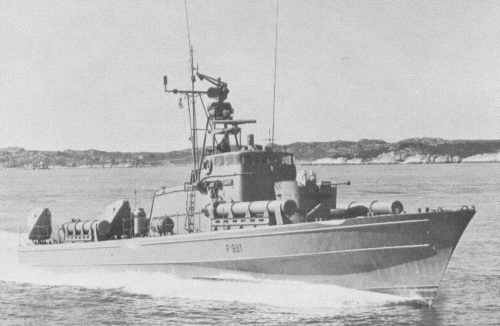

Rapp 1979
