Norge 1913
Eidsvold 1940

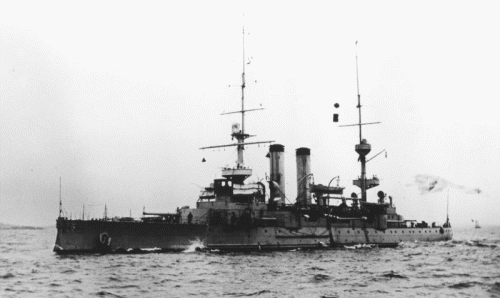

Norge 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Norge | Armstrong, Elswick, UK | 1899 | 31.1.1900 | 2.1901 | sunk 9.4.1940 | ||
| Eidsvold | Armstrong, Elswick, UK | 1899 | 14.6.1900 | 1901 | sunk 9.4.1940 |
|
Displacement normal, t |
3645 |
|
Displacement full, t |
4166 |
|
Length, m |
91.7 pp 94.6 oa |
|
Breadth, m |
15.4 |
|
Draught, m |
5.38 max |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 6 Yarrow boilers |
|
Power, h. p. |
4500 |
|
Max speed, kts |
16.5 |
|
Fuel, t |
coal 550 |
| Endurance, nm(kts) | 6000(10) |
|
Armour, mm |
belt: 152-127, bulkheads: 152, NS; turrets: 203-152, deck: 51-37, CT: 152 |
|
Armament |
2 x 1 - 209/44 Armstrong C, 6 x 1 - 149/46 Armstrong FF, 8 x 1 - 76/40 Armstrong N, 4 x 1 - 47/46 Hotchkiss, 2 - 450 TT (beam) |
|
Complement |
266 |
Project history: Largest combat ships of the Norwegian Navy in both World Wars. They were designed in 1898, and were the further development of Harald Haarfagre class, differed by using of Krupp armour instead of Harvey, water-tube boilers instead of fire-tube and two funnels instead of one.
From the moment of completing up to the Second World War beginning both ships were not exposed to any significant modernisations: all was limited by installation of several AA guns. Nevertheless, by 1940 these ships were in fair technical condition and easily could keep 15kts speed.
Protection: Belt protected about 60% of ship length, its thickness decreased to 127mm at upper edge, belt was covered by 51mm main deck, turtleback-form 37mm main deck protected ship ends.
Modernizations: 1927, both: + 2 x 1 - 47/46 QF Mk I
~1939, both: + 2 x 1 - 76/28 Bofors M36, 2 x 1 - 20/70 Oerlikon Mk I, 2 x 1 - 12.7/90
Naval service: Eidsvold 9.4.1940 was torpedoed at entrance to Narvik harbour by German destroyer Wilhelm Heidkamp, blown up and sunk. Norge 9.4.1940 was torpedoed in harbour of Narvik by German destroyer Bernd von Arnim, capsized and sunk.
Eidsvold
© Ivan Gogin, 2010-14
