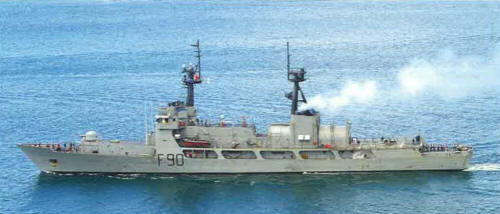

Thunder 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Thunder (ex-Chase) | F90 | 1103 | Avondale SY, Westwego, USA | 15.10.1966 | 20.5.1967 | 1.3.1968 // 13.5.2011 | in service (2019) |
| Okpabana (ex-Gallatin) | F93 | 1139 | Avondale SY, Westwego, USA | 17.4.1967 | 18.11.1967 | 20.12.1968 // 7.5.2014 | in service (2019) |
|
Displacement standard, t |
2716 |
|
Displacement full, t |
3050 |
|
Length, m |
106.7 wl 115.4 oa |
|
Breadth, m |
13.1 |
|
Draught, m |
6.20 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Fairbank Morse 38TD81/8 diesels / 2 Pratt & Whitney FT4A6 gas turbines |
|
Power, h. p. |
7000 / 36000 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel / gas turbine oil 800 |
|
Endurance, nm(kts) |
14000(11) |
|
Armament |
1 x 1 - 76/62 Mk 75, 4 x 1 - 12.7/90, 1 helicopter (A-109E) |
|
Electronic equipment |
SPS-64(v)6, SPS-73, Mk 92 radars, WLR-1H(v)5, WLR-3 ECM suites, 2x Mk 36 SRBOC decoy RL, SCCS CCS |
|
Complement |
100 |
Project history: Former USCG cutters of Hamilton class.
Modernizations: None.
Naval service: No significant events.

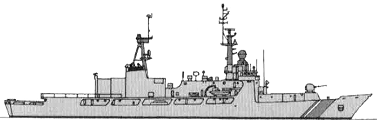

Thunder 2013
