NIGERIAN NAVY (NIGERIA)

COASTAL FORCES

TORIE patrol boats (2014)

Names

P258 Torie

P259 Egede

Builders

Nautic Africa, Cape Town, South Africa: P258, 259

Commissioned

2014: P258, 259

Losses

none

Transfers

none

Discarding

in service (2019): P258, 259



Displacement standard, t



Displacement full, t

26

Length, m

17.0

Breadth, m

4.50

Draught, m

0.95

No of shafts

2 waterjets

Machinery

2 MTU 8V2000 M84L diesels

Power, h. p.

2440

Max speed, kts

45

Fuel, t

diesel oil

Endurance, nm(kts)

400

Armament

1 x 1 - 12.7/90, 1 x 1 - 7.6/90

Sensors

radar

Complement

6

Project history: Nautic Africa 'Sentinel' design.

Modernizations: None.

Naval service: No significant events.

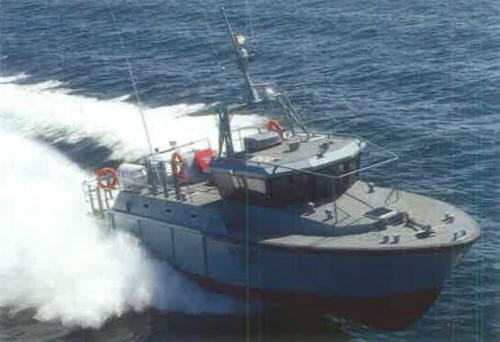

Egede 2013
