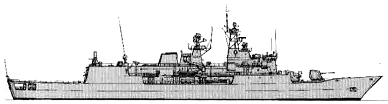

Te Kaha 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Te Kaha | F77 | Transfield, Williamstown, Australia | 27.9.1994 | 22.7.1995 | 22.7.1997 | in service (2019) | |
| Te Mana | F111 | Transfield, Williamstown, Australia | 28.6.1996 | 10.5.1997 | 10.12.1999 | in service (2019) |
|
Displacement standard, t |
3200 |
|
Displacement full, t |
3600 |
|
Length, m |
109.5 pp 117.5 oa |
|
Breadth, m |
13.8 wl 14.8 deck |
|
Draught, m |
4.12 hull 5.99 max |
|
No of shafts |
2 |
|
Machinery |
CODOG: 1 General Electric LM-2500 gas turbine / 2 MTU 12V1163 TB83 diesels |
|
Power, h. p. |
30000 / 8840 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel / gas turbine oil 423 |
|
Endurance, nm(kts) |
6000(18) |
|
Armament |
1 x 8 Sea Sparrow SAM (VLS, 8 RIM-7P), 1 x 1 - 127/54 Mk 45 mod.2, 1 x 6 - 20/76 Phalanx Mk 15 Block I, 6 x 1 - 12.7/90, 1 helicopter (SH-2G SeaSprite) |
|
Electronic equipment |
Atlas 9600-M, Sea Giraffe 150HC, SPS-49(v)8, 9LV200 Sea Viking, Mk 90 radars, Ceros 200 e/o director, Spherion-B sonar, Sceptre XL ECM suite, 4x Mk 36 mod.1 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, 9LV453 Mk 3 CCS |
|
Complement |
140 |
Project history: ANZAC (MEKO 200 ANZ) design, built for Australia and New Zealand. New Zealand ships originally were to have had two LM-2500 gas turbines and 31.75kts max speed but the starboard turbine was eliminated to save money. Sue to enhanced fuel supply endurance is considerably greater than on sister-ships in other countries. Option for two additional ships to replace Wellington and Canterbury was abandoned in 1997. Superstructures were built in New Zealand.
Modernizations: 2006, both: - Sceptre XL ECM suite; + Centaur ECM suite
2010, Te Kaha; 2011, Te Mana: - 1 x 6 - 20/76; + 1 x 6 - 20/76 Phalanx Mk 15 Block IB
2019, Te Kaha; planned, Te Mana: - 1 x 8 Sea Sparrow SAM, Atlas 9600-M, Sea Giraffe 150HC radars, Centaur ECM suite, 4x Mk 36 mod.1 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, 9LV453 Mk 3 CCS; + 1 x 32 Sea Ceptor SAM (VLS, 32 CAMM), SMART-S Mk 2, Sharp Eye radars, Elisra ECM suite, Grintek laser detector, Vampir NG e/o system, 4x MASS decoy RL, Sea Sentor torpedo decoy, CMS330 CCS
Naval service: No significant events.

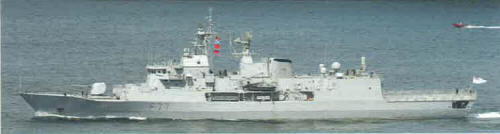

Te Kaha 2012
