PUKAKI patrol craft (2009)

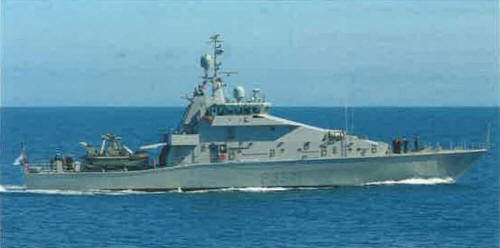

Pukaki 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Pukaki | P3568 | Tenix, Whangarei | 21.6.2007 | 6.5.2008 | 14.5.2009 | in service (2019) | |
| Rotoiti | P3569 | Tenix, Whangarei | 3.3.2006 | 30.7.2007 | 17.4.2009 | in service (2019) | |
| Taupo | P3570 | Tenix, Whangarei | 14.12.2007 | 22.7.2008 | 29.5.2009 | in service (2019) | |
| Hawea | P3571 | Tenix, Whangarei | 13.12.2006 | 11.12.2007 | 1.5.2009 | in service (2019) |
|
Displacement standard, t |
240 |
|
Displacement full, t |
340 |
|
Length, m |
55.0 |
|
Breadth, m |
9.00 |
|
Draught, m |
2.90 |
|
No of shafts |
2 |
|
Machinery |
2 MAN 12VP185 diesels |
|
Power, h. p. |
7800 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(12) |
|
Armament |
3 x 1 - 12.7/90 |
| Electronic equipment | nav. radar, WARRLOCK ECM suite |
|
Complement |
20 + 16 passengers |
Project history: Patrol boats of IPV (Inshore Patrol Vessel) built within Protector programme. Ordered in 2004 to replace Moa class boats. Built under merchant standards. 2 7.3m fast RIBs on davits.
Modernizations: None.
Naval service: No significant events.
Hawea 2011
