Zeehond 1943
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Zeehond (ex-Sturgeon) | N73 | Chatham DYd, UK | 1.1931 | 8.1.1932 | 2.1933 // 10.1943 | returned to UK 11.1945 (Sturgeon) |
|
Displacement standard, t |
640 |
|
Displacement normal, t |
730 / 927 |
|
Length, m |
61.7 |
|
Breadth, m |
7.32 |
|
Draught, m |
3.63 |
|
No of shafts |
2 |
|
Machinery |
2 Admiralty diesels / 2 electric motors |
|
Power, h. p. |
1550 / 1440 |
|
Max speed, kts |
13.75 / 10 |
|
Fuel, t |
diesel oil 44 |
|
Endurance, nm(kts) |
3800(10) / |
|
Armament |
6 - 533 TT (bow, 12), 1 x 1 - 76/45 20cwt QF Mk II, 1 x 1 - 20/70 Oerlikon Mk II/IV |
| Electronic equipment | type 286W or type 291W radar, type 120 sonar |
|
Complement |
38 |
| Diving depth operational, m | 60 |
Project history: Former British submarine of S class (1st group).
Modernizations: None
Naval service: No significant events.

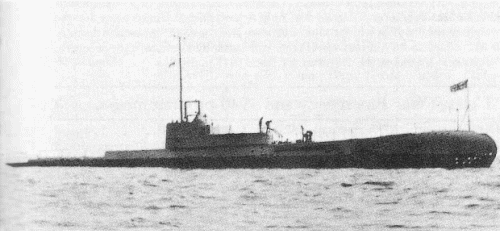

sister-ship HMS Sturgeon 1933
