K I 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| K I | 142 | De Schelde, Vlissingen | 9.1911 | 20.5.1913 | 7.1914 | stricken 1928 |
|
Displacement standard, t |
|
|
Displacement normal, t |
330 / 386 |
|
Length, m |
46.2 pp 48.6 oa |
|
Breadth, m |
4.69 |
|
Draught, m |
3.02 |
|
No of shafts |
2 |
|
Machinery |
2 MAN 8-cyl diesels / 2 electric motors |
|
Power, h. p. |
1800 / 500 |
|
Max speed, kts |
17 / 10.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3500(11) / 30(8) |
|
Armament |
3 - 450 TT (2 bow, 1 stern, 6) |
|
Complement |
17 |
| Diving depth operational, m | 40 |
Project history: First Dutch submarine for service in the East Indias, K means 'Koloniaal'. Hay-Fiume type, design of Marley F. Hay and Whitehead Co, Fiume (Austria-Hungary). Single-hulled.
Modernizations: None.
Naval service: No significant events.

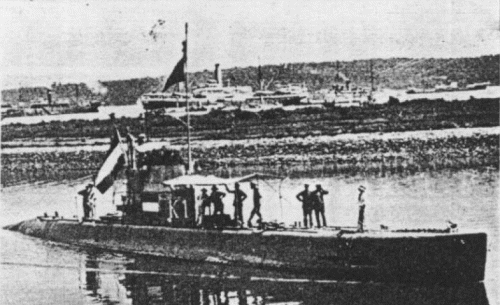

K I after WWI
Many thanks to Wolfgang Stöhr for additional information on this page.
