Rigel 1932
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Rigel | 37 | Nederlandse Dok- en Scheepsbouw Mij, Amsterdam | 3.1930 | 7.3.1931 | 11.1931 | scuttled 2.3.1942 |
|
Displacement standard, t |
1378 |
|
Displacement full, t |
1631 |
|
Length, m |
69.6 pp 74.0 oa |
|
Breadth, m |
11.0 |
|
Draught, m |
3.06 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 boilers |
|
Power, h. p. |
1400 |
|
Max speed, kts |
12.7 |
|
Fuel, t |
coal 197 |
|
Endurance, nm(kts) |
2200(10) |
|
Armament |
2 x 1 - 75/37 Krupp Nr.1, 2 x 1 - 12.7/90, 150 mines |
|
Complement |
67 |
Project history: Patrol ship and yacht of the governor-general of the East Indies. The design was developed on the basis of minelayer Krakatau. Rigel was reclassified to minelayer 15.10.1939.
Modernizations: None.
Naval service: Rigel was scuttled at Batavia 2.3.1942. She was lifted by Japanese in March, 1944 and put into repair, in 1945 she was returned to the Netherlands, but never commissioned again. In 1951, still being on repair at Surabaya, ship was transferred to Indonesia and renamed Dewakambar; in Naval Forces of Indonesia it was planed to convert her to survey vessel, however the further fate of the ship is unknown (probably, she was never repaired).

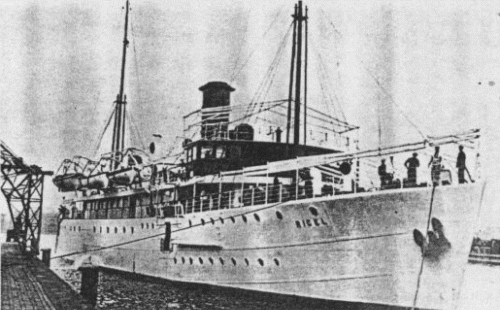

Rigel 1931
Many thanks to Wolfgang Stöhr for additional information on this page.
