Onversaagd 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Onversaagd | M884, 8.1965- A854 | Astoria Marine, USA | 9/1952 | 11.4.1953 | 5.1954 | survey vessel 4.1973 | |
| Onbevreesd | M885, 8.1965- A855 | Astoria Marine, USA | 12/1952 | 7.11.1953 | 9.1954 | HQ vessel 3.1976 | |
| Onverschrokken | M886, 8.1965- A856 | Peterson Builders, Sturgeon Bay, USA | 2/1952 | 17.1.1953 | 7.1954 | trials ship Mercuur 5.1973 | |
| Onvermoeid | M887, 8.1965- A857 | Peterson Builders, Sturgeon Bay, USA | 2/1952 | 2.5.1953 | 9.1954 | stricken 10.1971 | |
| Onvervaard | M888, 8.1965- A858 | Astoria Marine, USA | 4/1952 | 6.3.1954 | 1.1955 | stricken 5.1982 | |
| Onverdroten | M889, 8.1965- A859 | Peterson Builders, Sturgeon Bay, USA | 2/1952 | 22.8.1953 | 11.1954 | stricken 5.1982 |
|
Displacement standard, t |
637 |
|
Displacement full, t |
735 |
|
Length, m |
50.3 wl 52.3 oa |
|
Breadth, m |
10.4 |
|
Draught, m |
4.00 |
|
No of shafts |
2 |
|
Machinery |
4 Packard diesels |
|
Power, h. p. |
2280 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2400(12) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90, A Mk 2, A Mk 4, A Mk 6 acoustic, M Mk 5, M Mk 6, M Mk 7 magnetic, Oropesa No.1 mechanical minesweeping gear |
|
Electronic equipment |
SPS-53 radar, UQS-1 sonar |
|
Complement |
70 |
Project history: Ocean minesweepers of the Agile class were transferred in 1954-1955 under MDAP. They had wooden hulls and diesels of nonmagnetic stainless steel alloy.
Modernizations: None.
Naval service: No significant events.

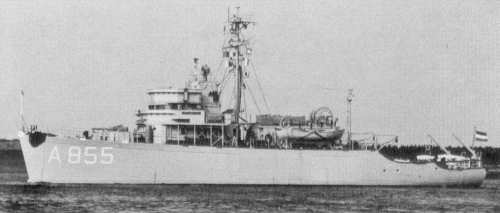

Onbevreesd 1979
