L9530 landing craft (1984-1986)

Names	L9530-9535
Builders	Rijkswerf Willemsoord, Den Helder: L9530-9535
Completed	1984: L9530, 9531 1985: L9532-9534 1986: L9535
Losses	None
Transfers	None
Discarding	2013-2014: L9530-9535

Displacement standard, t
9

Displacement full, t

14

Length, m

16.0

Breadth, m

4.40

Draught, m

1.30

No of shafts

1 Schottel swiveling propeller

Machinery

1 DAF-Turbo diesel

Power, h. p.

260

Max speed, kts

11

Fuel, t

diesel oil

Endurance, nm(kts)
220(11)

Armament

1 x 1 - 7.6/90

Military load

25 troops or 1 Land Rover or 1 BV202E Snowcat

Electronic equipment Furuno radar

Complement

3

Project history: LCA Mk 2. GRP construction.

Modernizations: None.

Naval service: No significant events.

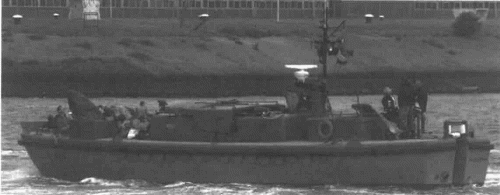

L9533 2011

� Ivan Gogin, 2018

ROYAL DUTCH NAVY (NETHERLANDS)

AMPHIBIOUS SHIPS

L9530 landing craft (1984-1986)

Displacement standard, t	9
Displacement full, t	14
Length, m	16.0
Breadth, m	4.40
Draught, m	1.30
No of shafts	1 Schottel swiveling propeller
Machinery	1 DAF-Turbo diesel
Power, h. p.	260
Max speed, kts	11
Fuel, t	diesel oil
Endurance, nm(kts)	220(11)
Armament	1 x 1 - 7.6/90
Military load	25 troops or 1 Land Rover or 1 BV202E Snowcat
Electronic equipment	Furuno radar
Complement	3
