L9525 landing craft (1998-1999)

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
	L9525		Visser, Den Helder	28.4.1997	9.8.1997	7.4.1998	in service (2019)
	L9526		Visser, Den Helder	28.9.1998	25.6.1999	31.7.1999	in service (2019)
	L9527		Visser, Den Helder	28.9.1998	30.8.1999	24.9.1999	in service (2019)
	L9528		Visser, Den Helder		22.10.1999	17.12.1999	in service (2019)
	L9529		Visser, Den Helder		12.11.1999	20.12.1999	in service (2019)

Displacement standard, t

Displacement full, t

200

Length, m

23.8 wl 27.3 oa

Breadth, m

6.84

Draught, m

1.55

No of shafts

2 Schottel vertical-cycloidal propellers

Machinery

2 Caterpillar 3412C D1-T diesel-generators, 2 Alconza D.400.M6 electric motors

Power, h. p.

1500

Max speed, kts

9

Fuel, t

diesel oil

Endurance, nm(kts)
400(8)

Armament

1 x 1 - 12.7/90, 1 x 1 - 7.6/90

Military load

60t cargo or 130 troops or 3 4t trucks or 2 10t trucks or 4 BV206 personnel carriers or 2 Warrior AIFVs

Electronic equipment Furuno radar

Complement

5

Project history: Four were ordered in 1997 for use with Rotterdam (L 800), with an option for the fifth later taken up. Originally were to have had hulls built in Romania, but the hulls were instead built at Eoermond and fitted out at Den Helder. Visser is a subsidiary of the Damen group. Assigned directly to the Royal Netherlands Marine Corps. Unusually deep 4.4m molded depth to hull, which has vehicle ramps fore and aft. Can also carry one beach armored recovery vehicle (BARV). Ballast tanks aft are used to alter the hull trim for beaching. The propellers are mounted fore and aft. Electric power is taken from one of the main generators, and there is also a Perkins diesel-powered emergency set. The articulating radar mast is raised or lowered pneumatically.

Modernizations: 2004, L9526; 2005, L9527; 2006, L9525, L9528; 2007, L9529: were lengthened (36.1m, 200/260t)

Naval service: No significant events.

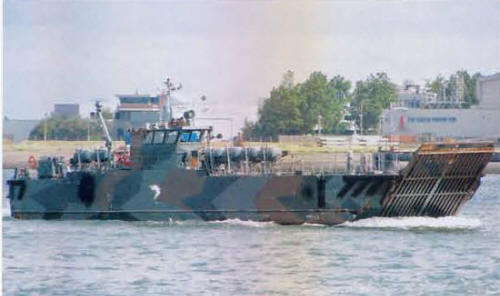

L9528 2008
