KORTENAER frigates (1978-1983)

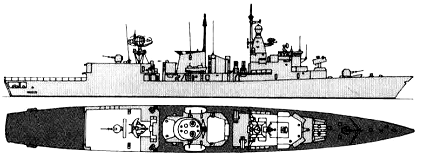

Kortenaer 1980

Kortenaer 2000

Name No Yard No Builder Laid down Launched Comm Fate
Kortenaer F807 350 KM De Schelde, Vlissingen 8.4.1975 18.12.1976 26.10.1978 to Greece 12.1997 (Κουντουριώτης [Kountouriotis])
Callenburgh F808   KM De Schelde, Vlissingen 2.9.1975 26.3.1977 26.7.1979 to Greece 3.1994 (Αδρίας[Adrias])
Van Kinsbergen F809   KM De Schelde, Vlissingen 2.9.1975 16.4.1977 24.4.1980 to Greece 3.1995 (Ναυαρίνον [Navarinon])
Banckert F810   KM De Schelde, Vlissingen 25.2.1976 30.9.1978 29.10.1980 to Greece 5.1993 (Αιγαίον [Aigaion])
Piet Hein F811 354 KM De Schelde, Vlissingen 28.4.1977 3.6.1978 14.4.1981 stricken 6.1998, to UAE (الإميرة [Al Emirat])
Pieter Florisz F812   KM De Schelde, Vlissingen 2.7.1977 15.12.1979 10.10.1981 // --- incomplete to Greece ('Ελλη [Elli])
Witte de With F813   KM De Schelde, Vlissingen 13.6.1978 27.10.1979 18.9.1982 // --- incomplete to Greece (Λήμνος [Limnos])
Abraham Crijnssen F816 357 KM De Schelde, Vlissingen 25.10.1978 16.5.1981 6.1.1983 to UAE 10.1997 (أبو ظبي [Abu Dhabi])
Philips van Almonde F823 358 Wilton-Fijenoord, Schiedam 1.10.1977 11.8.1979 2.12.1981 to Greece 10.2002 (Θεμιστοκλής [Themistokles])
Bloys van Treslong F824 359 Wilton-Fijenoord, Schiedam 5.5.1978 15.11.1980 25.11.1982 to Greece 11.2004 (Νικηφόρος Φωκάς [Nikiforos Fokas])
Jan van Brakel F825 360 KM De Schelde, Vlissingen 16.11.1979 16.5.1981 14.4.1983 stricken 10.2001, to Greece (Κανάρης [Kanaris])
Pieter Florisz (ex-Willem van der Zaan) F826 361 KM De Schelde, Vlissingen 15.1.1980 8.5.1982 1.10.1983 to Greece 6.2001 (Μπουμπουλίνα [Bouboulina])



Displacement standard, t

3000

Displacement full, t

3800

Length, m

121.8 pp 130.2 oa

Breadth, m

14.4

Draught, m

4.40 hull 6.00 propellers

No of shafts

2

Machinery

COGOG: 2 Rolls-Royce Olympus TM-3B gas turbines / 2 Rolls-Royce Tyne RM-1C gas turbines

Power, h. p.

51600 / 9800

Max speed, kts

30

Fuel, t

gas turbine oil

Endurance, nm(kts)

4700(16)

Armament

F807, 808: 2 x 4 Harpoon SSM (8 RGM-84A/C), 1 x 8 NATO Sea Sparrow SAM (24 RIM-7), 2 x 1 - 76/62 OTO Melara Compact, 4 - 324 Mk 32 mod. 9 TT (Mk 46 mod. 5), 2 helicopters (SH-14D Sea Lynx)

F809-813, 816, 823-826: 2 x 4 Harpoon SSM (8 RGM-84A/C), 1 x 8 NATO Sea Sparrow SAM (24 RIM-7), 1 x 1 - 76/62 OTO Melara Compact, 1 x 1 - 40/70 Bofors 350, 4 - 324 Mk 32 mod. 9 TT (Mk 46 mod. 5), 2 helicopters (SH-14D Sea Lynx)

Electronic equipment

F807-813: ZW-06, LW-08, WM-25, STIR-18 radars, SQS-505 sonar, Sphinx ECM suite, 2x Corvus decoy RL, SEWACO II CCS

F816: ZW-06, LW-08, WM-25, STIR-18 radars, SQS-505 sonar, Sphinx ECM suite, 2x Mk 36 SRBOC decoy RL, SEWACO II CCS

F823-826: ZW-06, LW-08, WM-25, STIR-18 radars, SQS-509 (PHS-36) sonar, Sphinx ECM suite, 2x Mk 36 SRBOC decoy RL, SEWACO II CCS

Complement

200



Project history: Designed as a replacements for the twelve postwar ASW destroyers of the Holland and Friesland classes, the frigates of the Kortenaer class were intended to have the maximum degree of commonality of weapons, electronics and propulsion systems with other contemporary NATO frigates. Attempts were initially made to develop a common hull-form with the Royal Navy, but these and approaches to other NATO navies foundered. The Netherlands Navy therefore elected to develop its own 'Standard' design, so-called because it was planned to build ASW and AAV variants on a standard, common hull, and because the design conformed to NATO requirements for ocean escorts.

    Eight were ordered in 1974, with a further four in 1976. However, the original F812 and F813 were sold to Greece while fitting out, and it was decided that these should be replaced by two AAW variants.

    The hull-form was similar to that of contemporary French construction, with continuous upper and main decks, a single rudder of the semi-balanced type, and a clipper bow with 'negative' sheer The desire for good performance in a seaway resulted in a length / beam ratio less favourable than a generally accepted, and careful design was necessary to ensure that the ships met speed requirements.

    The propulsion system and machinery layout were identical to those of the Tromp class. All machinery is resiliently mounted and there was a single pair of non-retractable fin stabilizers. A high degree of automation means that the total engine room complement was only twenty-nine. The ship can be fought and navigated from the operations room, which was fitted with a SEWACO-II tactical data system. On the main deck there was a central passageway running the entire length of the ship, and personnel spaces were grouped in such a way as to minimize traffic.

    Two Lynx helicopters can be accommodated, but the ships carried only one during peacetime operations. Similarly, only two or four Harpoon SSM were fitted in peacetime, although this figure would be increased to eight in wartime. The weapons systems were all in widespread service with other NATO navies, but the electronics systems, with the sole exception of the hull sonar, were of Netherlands design and manufacture.

Modernizations: 1982, Kortenaer: - 1 x 1 - 76/62; + 1 x 1 - 40/70 Bofors 350

1984, Callenburgh: - 1 x 1 - 76/62; + 1 x 7 - 30/77 Goalkeeper, Goalkeeper radar

1986-early 1990s, Kortenaer, Van Kinsbergen, Banckert, Piet Hein, Abraham Crijnssen, Philips van Almonde, Bloys van Treslong, Jan van Brakel, Pieter Florisz: - 1 x 1 - 40/70; + 1 x 7 - 30/77 Goalkeeper, Goalkeeper radar

1986-early 1990s, all survived: + Ramses ECM suite, SLQ-25A Nixie torpedo decoy

1987-early 1990s, Kortenaer, Callenburgh, Van Kinsbergen, Piet Hein: - 2x Corvus decoy RL; + 2x Mk 36 SRBOC decoy RL

1989-1990, Jan van Brakel, Pieter Florisz: - 2 helicoipters; + SQR-18A sonar

1991, Pieter Florisz: + 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90



Naval service: No significant events.

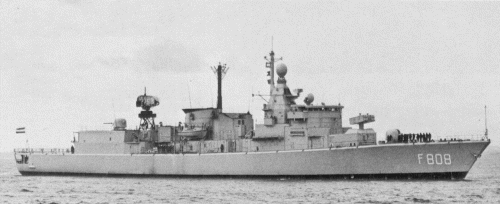

Callenburgh 1980

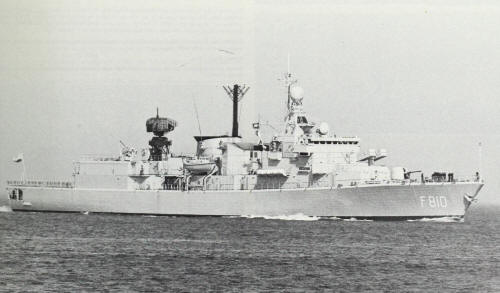

Banckert 1985
