Arend 1940
Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
Arend | 311 | Wilton-Fijenoord, Schiedam | 21.5.1929 | 1929 | scuttled 1.3.1942 | ||
Valk | 312 | Wilton-Fijenoord, Schiedam | 19.10.1929 | 1929 | scuttled 8.3.1942 |
Displacement standard, t |
748 |
Displacement full, t |
1011 |
Length, m |
70.0 pp 71.9 oa |
Breadth, m |
9.00 |
Draught, m |
2.82 |
No of shafts |
2 |
Machinery |
2 VTE, 2 boilers |
Power, h. p. |
3350 |
Max speed, kts |
18 |
Fuel, t |
oil 275 |
Endurance, nm(kts) |
1400 (10) |
Armament |
2 x 1 - 75/52 SA Nr.2, 1 x 1 - 7.9/80, 1 seaplane (WA) |
Complement |
61 |
Project history: Gouvernementsmarine ships intended for service in East Indies.
Modernizations: None.
Naval service: Arend was scuttled at Tadjong Priok 1.3.1942, salvaged by Japanese, commissioned by IJN as patrol No108, returned in 1945 and finally sunk as a target in 1948. Valk was scuttled at Tjilatjap 8.3.1942, salvaged by Japanese, commissioned by IJN as patrol No104 and mined off Maizuru 24.8.1945.

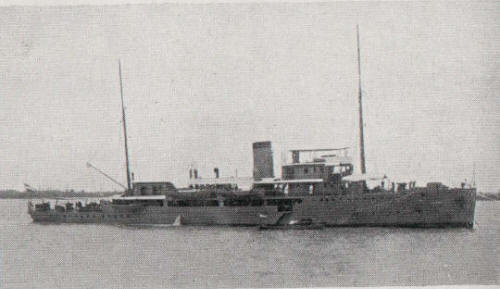

Arend 1933
Many thanks to Wolfgang Stöhr for additional information on this page.
