Van Galen 1942

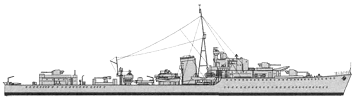

Van Galen 1942
Van Galen 1955
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Van Galen (ex-Noble) | G84, 1945- J3, 1950- D803 | 1345 | Denny, Dumbarton, UK | 7/1939 | 17.4.1941 | 2.1942 | stricken 10.1956 |
| Tjerk Hiddes (ex-Nonpareil) | G16, 1945- J5, 1950- D806 | 1346 | Denny, Dumbarton, UK | 5/1940 | 25.6.1941 | 10.1942 | to Indonesia 3.1951 (Gadjah Mada) |
|
Displacement standard, t |
1773 |
|
Displacement full, t |
2384 |
|
Length, m |
103.5 pp 108.7 oa |
|
Breadth, m |
10.9 |
|
Draught, m |
4.22 |
|
No of shafts |
2 |
|
Machinery |
2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers |
|
Power, h. p. |
40000 |
|
Max speed, kts |
36 |
|
Fuel, t |
oil 464 |
| Endurance, nm(kts) | 5500(15) |
|
Armament |
Van Galen: 3 x 2 - 120/45 QF Mk XII, 1 x 4 - 40/39 QF Mk VIII, 6 x 1 - 20/70 Oerlikon Mk II/IV, 2 x 5 -533 TT, 2 DCT, 1 DCR (45 DC) Tjerk Hiddes: 3 x 2 - 120/45 QF Mk XII, 1 x 4 - 40/39 QF Mk VIII, 4 x 1 - 20/70 Oerlikon Mk II/IV, 2 x 5 -533 TT, 2 DCT, 1 DCR (45 DC) |
|
Electronic equipment |
type 285, type 286/P radars, type 124 sonar |
|
Complement |
218 |
Project history: Ex-British destroyers of N class, transferred before completion: Van Galen 11.2.1942 and Tjerk Hiddes 27.5.1942.
Modernizations: 1943-1944, both: + 2 DCT, 1 DCR (DC stowage was 45 pcs)
1943-1945, presumably both: - type 286/P radar; + type 271 or type 293, type 291 radars
Naval service: No significant events.

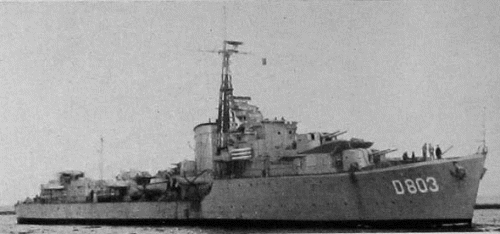

Van Galen 1951
Many thanks to Wolfgang Stöhr for additional information on this page.
