G13 1914
G13 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| G13 | 151 | De Schelde, Vlissingen | 3.1913 | 18.10.1913 | 3.1914 | to United Kingdom 12.1940-7/1942, BU 2.1943 | |
| G14 | 152 | De Schelde, Vlissingen | 3.1913 | 15.11.1913 | 3.1914 | internal explosion 11.9.1919, BU | |
| G15 | 254 | Fijenoord, Schiedam | 6.1913 | 3.1.1914 | 8.1914 | to United Kingdom 12.1940-7/1942, BU 2.1943 | |
| G16 | 255 | Fijenoord, Schiedam | 7.1913 | 10.3.1914 | 7.1914 | scuttled 14.5.1940 |
|
Displacement normal, t |
180 |
|
Displacement full, t |
230 |
|
Length, m |
49.5 pp |
|
Breadth, m |
5.25 |
|
Draught, m |
1.50 normal |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 cylindrical boilers |
|
Power, h. p. |
2600 |
|
Max speed, kts |
25 |
|
Fuel, t |
coal 44 |
|
Endurance, nm(kts) |
1230(8) |
|
Armament |
2 x 1 - 75/37 Krupp No.4, 3 x 1 - 450 TT |
|
Complement |
27 |
Project history: Further development of Yarrow designs (Hydra and Ophir classes), differed by good seaworthiness for their dimensions: that was reached thanks to presence of a high forecastle. To the Second World War beginning they absolutely became outdated and were used as training and patrol ships in European waters.
Modernizations: 1930s, G13, 15, 16: + 2 x 1 - 12.7/90
Naval service: G14 was stricken after boiler explosion 11.9.1919.
G16 was scuttled 14.5.1940 at Den Helder; she was salvaged, repaired and entered German Navy list as torpedo recovery vessel TFA9, BU after war. G13 and G15 in May, 1940 escaped to Britain; 27.12.1940 both were transferred to RN, returned 27.7.1942 and in February, 1943 scrapped.

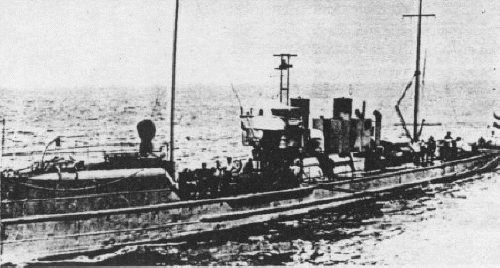

G16 between the wars
Many thanks to Wolfgang Stöhr for additional information on this page.
