Friesland 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Friesland | D812 | 428 | Nederlandse Dok- en Scheepsbouw Mij, Amsterdam | 17.12.1951 | 21.2.1953 | 22.3.1956 | stricken 6.1979 |
| Groningen | D813 | 429 | Nederlandse Dok- en Scheepsbouw Mij, Amsterdam | 21.2.1952 | 9.1.1954 | 12.9.1956 | to Peru 3.1981 (Gálvez) |
| Limburg | D814 | 271 | KM De Schelde, Vlissingen | 28.11.1953 | 5.9.1955 | 31.10.1956 | to Peru 6.1980 (Capitan Quiñones) |
| Overijssel | D815 | 729 | Wilton-Fijenoord, Schiedam | 15.10.1953 | 8.8.1955 | 4.10.1957 | to Peru 6.1982 (Colonel Bolognesi) |
| Drenthe | D816 | 436 | Nederlandse Dok- en Scheepsbouw Mij, Amsterdam | 9.1.1954 | 26.3.1955 | 1.8.1957 | to Peru 6.1981 (Guise) |
| Utrecht | D817 | 272 | KM De Schelde, Vlissingen | 15.2.1954 | 2.6.1956 | 1.10.1957 | to Peru 10.1980 (Castilla) |
| Rotterdam | D818 | 277 | Rotterdamse Droogdok Mij | 7.1.1954 | 26.1.1956 | 28.2.1957 | to Peru 6.1981 (Diez Canseco) |
| Amsterdam | D819 | 437 | Nederlandse Dok- en Scheepsbouw Mij, Amsterdam | 26.3.1955 | 25.8.1956 | 10.4.1958 | to Peru 5.1980 (Villar) |
|
Displacement standard, t |
2497 |
|
Displacement full, t |
3070 |
|
Length, m |
112.8 pp 116.0 oa |
|
Breadth, m |
11.7 |
|
Draught, m |
5.20 |
|
No of shafts |
2 |
|
Machinery |
2 sets Werkspoor geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
36 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 4000(18) |
|
Armament |
2 x 2 - 120/50 Bofors No.10, 6 x 1 - 40/70 Bofors SP48, 2 x 4 - 375 Bofors ASWRL, 2 DCR |
|
Electronic equipment |
LW-02, DA-01, ZW-01, M45 radars, type 170B, type 162 sonars |
|
Complement |
284 |
Project history: The major difference between the Friesland class and their predecessors lay in the increased size and power of their propulsion machinery, which was identical to that of the US Gearing class; 42.8kts was attained on trials. The increase in length and displacement enabled them to carry a heavier battery of light AA guns: four single 40mm were grouped around a built-up after structure carrying the lattice mainmast, and a further two were fitted forward of the bridge.
Modernizations: 1960, Utrecht; 1961, Overijssel: + 8 - 533 ASW TT
early 1960s, Utrecht, Overijssel: - 8 - 533 ASW TT
mid-1960s, all: - 2 x 1 - 40/70 (fwd)
early 1970s, all: - type 170B, type 162 sonars; + CWE-10N, PAE-1N sonars
1970s, all: - LW-02, DA-01, ZW-01 radars; + LW-03, DA-05, ZW-06, Decca TM1229 radars
1977-1978, all: - FC radar for 40mm guns
Naval service: No significant events.

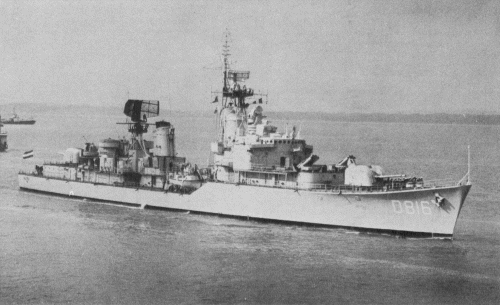

Drenthe 1980
Many thanks to Wolfgang Stöhr for additional information on this page.
