similar Hydra 1905
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Draak | 120 | De Schelde, Vlissingen | 1905 | 21.7.1906 | 1907 | subsidiary service 1921 | |
| Krokodil | 121 | De Schelde, Vlissingen | 1905 | 2.8.1906 | 1907 | subsidiary service 1921 | |
| Zeeslang | 126 | De Schelde, Vlissingen | 1906 | 27.4.1907 | 1907 | subsidiary service 1921 |
|
Displacement normal, t |
90 |
|
Displacement full, t |
103 |
|
Length, m |
39.6 |
|
Breadth, m |
4.11 |
|
Draught, m |
2.20 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 2 Yarrow boilers |
|
Power, h. p. |
1500 |
|
Max speed, kts |
24 |
|
Fuel, t |
coal 21 |
|
Endurance, nm(kts) |
1500(10) |
|
Armament |
2 x 1 - 37/20 Hotchkiss, 1 - 450 TT (bow), 1 x 1 - 450 TT |
|
Complement |
21 |
Project history: They were similar to the Hydra class boats but with one fewer tube, and, like that class, belonged to the East Indies Marine (Indische Militaire Marine).
Modernizations: None.
Naval service: No significant events.

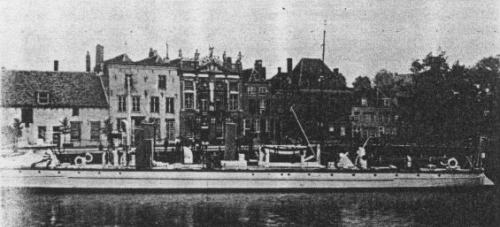

Krokodil 1907
Many thanks to Wolfgang Stöhr for additional information on this page.
