Banckert 1945
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Banckert (ex-Quilliam) | J1, 1950- D801 | 633 | Hawthorn Leslie, Hebburn, UK | 8/1941 | 29.11.1941 | 10/1942 // 11.1945 | stricken 10.1956 |
|
Displacement standard, t |
1705 |
|
Displacement full, t |
2425 |
|
Length, m |
103.5 pp 109.2 oa |
|
Breadth, m |
10.9 |
|
Draught, m |
4.22 deep load |
|
No of shafts |
2 |
|
Machinery |
2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers |
|
Power, h. p. |
40000 |
|
Max speed, kts |
36.75 |
|
Fuel, t |
oil 588 |
| Endurance, nm(kts) | 4675(20) |
|
Armament |
4 x 1 - 120/45 QF Mk IX, 1 x 4 - 40/39 QF Mk VIII, 2 x 2 - 20/70 Oerlikon Mk IV, 4 x 1 - 20/70 Oerlikon Mk IV, 2 x 4 - 533 TT, 4 DCT, 3 DCR (70 - 130 DC) |
|
Electronic equipment |
type 271 or type 272, type 285, type 290 or type 291 radars, type 144 sonar |
|
Complement |
225 |
Project history: Former RN destroyer of Q class.
Modernizations: None.
Naval service: No significant events.

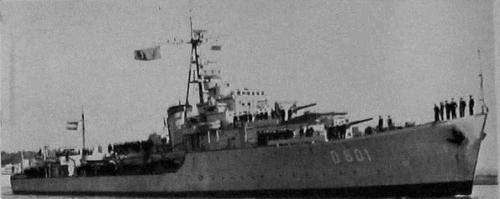

Banckert 1953
Many thanks to Wolfgang Stöhr for additional information on this page.
