Ardjoeno 1887
|
Names |
Ardjoeno Batok Dempo Cycloop Habang Goentoer Empong Foka Krakatau Idjen |
|
Builders |
Yarrow, Poplar, UK: Ardjoeno, Empong Rijkwerf Amsterdam: Batok, Cycloop, Habang, Goentoer, Foka, Krakatau, Idjen Fijenoord, Schiedam: Dempo |
|
Commissioned |
1887: Ardjoeno, Dempo 1888: Habang, Krakatau, Cycloop 1889: Batok, Foka, Idjen 1890: Empong 1892: Goentoer |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1911: Ardjoeno, Dempo, Batok, Goentoer 1912: Habang 1913: Foka, Krakatau 1918: Cycloop 1919: Empong, Idjen |
|
Displacement normal, t |
Ardjoeno, Dempo: 82 Batok, Cycloop: 84 Habang: 79 Goentoer, Empong, Foka: 85 Krakatau: 86 Idjen: 90 |
|
Displacement full, t |
|
|
Length, m |
Ardjoeno, Batok, Dempo: 38.4 Cycloop, Goentoer, Empong, Foka: 38.6 Habang, Krakatau, Idjen: 39.2 |
|
Breadth, m |
3.97 |
|
Draught, m |
Ardjoeno: 1.83 Batok, Dempo, Cycloop: 2.06 Habang, Goentoer, Empong, Foka, Krakatau, Idjen: 1.88 |
|
No of shafts |
1 |
|
Machinery |
1 VC, 1 locomotive boiler |
|
Power, h. p. |
Ardjoeno: 800 Batok: 725 Dempo: 760 Cycloop: 680 Habang: 928 Goentoer: 728 Empong: 1089 Foka: 962 Krakatau: 746 Idjen: 836 |
|
Max speed, kts |
Ardjoeno: 21 Batok: 20.7 Dempo: 20.5 Cycloop: 19.8 Habang: 21.7 Goentoer: 20 Empong: 22.8 Foka: 22.1 Krakatau: 19.1 Idjen: 20.6 |
|
Fuel, t |
coal 10 |
|
Endurance, nm(kts) |
1400(10) |
|
Armament |
2 x 1 - 37/20 Hotchkiss, 2 - 450 TT (bow) |
|
Complement |
16 |
Project history: 1st class torpedo boats.
Modernizations: None.
Naval service: No significant events.

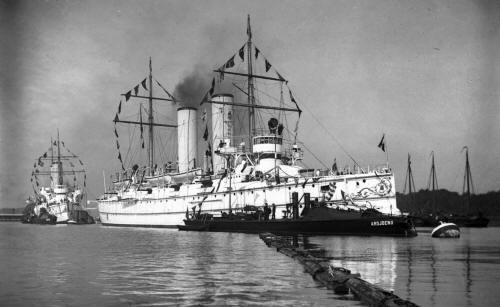

Ardjoeno

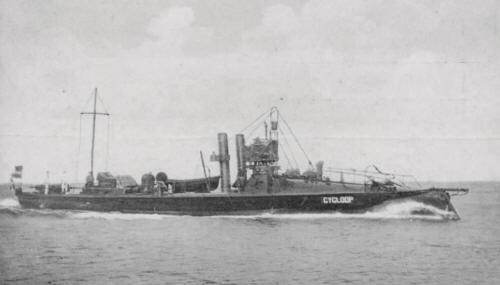

Cycloop
© Ivan Gogin, 2014
