Sumatra 1891
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sumatra | Rijkswerf Amsterdam | 5.3.1888 | 26.1.1890 | 2.6.1891 | stricken 1907 |
|
Displacement normal, t |
1693 |
|
Displacement full, t |
|
|
Length, m |
70.0 |
|
Breadth, m |
11.3 |
|
Draught, m |
4.67 max |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 4 cylindrical boilers |
|
Power, h. p. |
2350 |
|
Max speed, kts |
17 |
|
Fuel, t |
coal 276 |
|
Endurance, nm(kts) |
1500(10) |
|
Armour, mm |
steel; deck: 38, shields: 100, CT: 150 |
|
Armament |
1 x 1 - 209/32 Krupp No.1, 1 x 1 - 149/32 Krupp No.1, 2 x 1 - 120/32 Krupp No.2, 4 x 1 - 37/20 Hotchkiss, 2 x 5 - 37/17 Hotchkiss, 2 - 356 TT (beam) |
|
Complement |
181 |
Project history: Protected cruiser with 38mm deck. The 21cm gun was forward and the 15cm aft, both in shields, with the 12cm sponsoned abreast the foremast.
Ship protection: Ship was protected by 38mm deck.
Modernizations: None.
Naval service: No significant events.

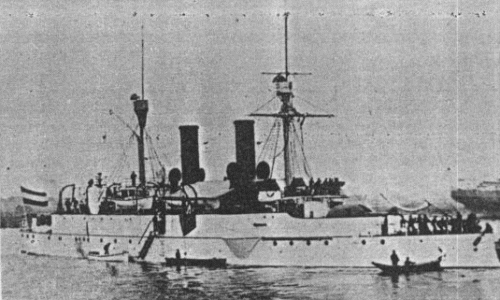

Sumatra
