Atjeh 1878
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Atjeh | Rijkswerf Amsterdam | 3.3.1875 | 6.12.1876 | 1.11.1877 | accommodation ship 11.1906 | ||
| Tromp | Rijkswerf Amsterdam | 1875 | 1877 | 1878? | stricken 1904 | ||
| Koningin Emma der Nederlanden (ex-De Ruyter) | Rijkswerf Amsterdam | 1876 | 1879 | 1880? | hulk 1900 | ||
| De Ruyter | Rijkswerf Amsterdam | 1879 | 1880 | 1885 | stricken 1899 | ||
| Van Speyk | Rijkswerf Amsterdam | 1880 | 1882 | 1883? | stricken 1897 | ||
| Johan Willem Friso (ex-Kortenaer) | Rijkswerf Amsterdam | 1883 | 1886 | 1887? | stricken 1897 |
|
Displacement normal, t |
3425 - 3669 |
|
Displacement full, t |
|
|
Length, m |
91.8 - 92.1 |
|
Breadth, m |
12.5 |
|
Draught, m |
6.40 - 6.96 max |
|
No of shafts |
1 |
|
Machinery |
|
|
Power, h. p. |
2700 - 3300 |
|
Max speed, kts |
13.5 - 14.8 |
|
Fuel, t |
coal 440 - 580 max |
|
Endurance, nm(kts) |
2000(10) |
|
Armament |
6 x 1 - 173/22 Krupp No.1, 8 x 1 - 120/16 Krupp No.1 |
|
Complement |
277 - 306 |
Project history: Ship-rigged unprotected cruisers with sheathed iron hulls. De Ruyter and Van Speyk had one funnel, others had two.
Modernizations: 1880s, all: + 8 x 1 - 37/20 Hotchkiss, 6 x 5 - 37/17 Hotchkiss
Naval service: No significant events.

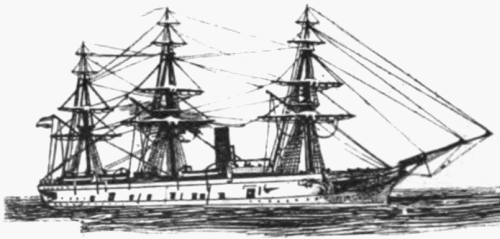

De Ruyter
